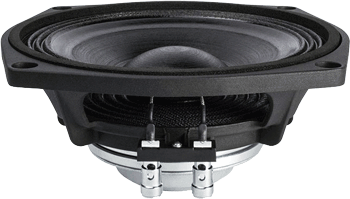

• THE NEW FAITAL PRO 6PR160 6.5" MIDRANGE / MID-BASS SPEAKER CAN HANDLE 120 WATTS AES & 240 WATTS PROGRAM POWER
• FEATURES AN ALUMINUM DEMODULATION RING FOR A FLATTER RESPONSE & LOWER DISTORTION
• WIDE FREQUENCY RANGE FROM 80HZ TO 8.0KHZ & EFFICIENCY OF 95DB SPL
• WEIGHS ONLY 2.2 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT AS A MIDRANGE OR MID-BASS SPEAKER FROM 80HZ TO 8.0KHZ

6PR160 HAS AN ALUMINUM DEMODULATION RING FOR LOWER DISTORTION & A WIDE FREQUENCY RANGE FROM 80HZ - 8KHZ
	Item Price: $171.95
WOOFER MODEL	6PR160
Specifications
Nominal Basket Diameter	6.5" / 160mm
Impedance	8 ohms
AES Power Rating	120 Watts
Program Power	240 Watts
Frequency Response	80Hz - 8.0kHz
Sensitivity (1W/1m)	95dB SPL
Voice Coil Diameter	1.46" / 37mm
Winding Depth	12 mm
Magnetic Gap Depth	6.0 mm
X Damage	11.6 mm
BL Factor	11 N/A
Flux Density	1.6 T
Mounting Information
Overall Diameter	7.34"/6.37" / 186.5mm/162
Bolt Circle Diameter	6.77" / 172mm
Baffle Cutout Diameter-Front Mount	5.79" / 147mm
No. Of Mounting Holes	4
Overall Depth	2.87" / 73mm
Flange & gasket Thickness	0.35" / 9.0mm
Net Weight	2.2 lb. / 1.0 kg.
Shipping Weight	2.4 lb. / 1.2 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation	Aluminum Ring
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	90 Hz
Impedance (Re)	5.9 ohms
Coil Inductance (Le)	0.28 mH
Mechanical Q (Qms)	6.0
Electrical Factor (Qes)	.35
Total Q (Qts)	.33
Comp. Equivelant Vol. (Vas)	0.17 ft3 / 4.86 Liters
Voice Coil Overhang (Xmax)	5.0 mm
Surface Area of Cone (Sd)m2	0.0117m2
Reference Efficiency	1.0%
Diaphragm Mass (Mms)	12.5 Grams
Mechanical Compliance (Cms)	.25 mm/N
Mechanical Resistance (Rms)	1.07 Kg/s
Frequency Response

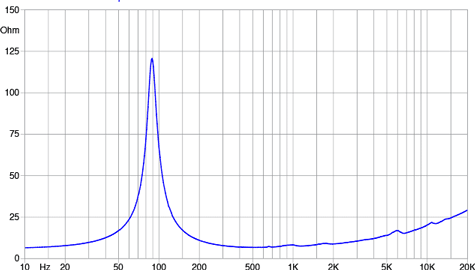

Free Air Impedance Curve

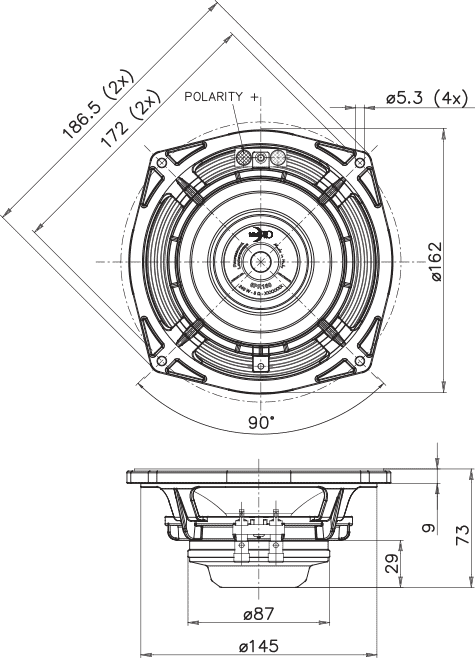

Mounting Dimensions
