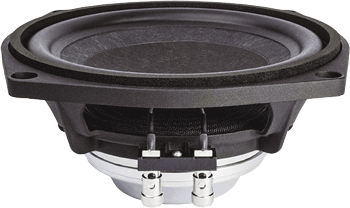

• THE NEW FAITAL PRO 6RS140 6.5" MID-BASS / BASS SPEAKER CAN HANDLE 200 WATTS AES & 400 WATTS PROGRAM POWER
• FEATURES A HALF ROLL RUBBER SURROUND FOR EXTENDED BASS IN A CAST ALUMINUM FRAME
• ALUMINUM DEMODULATION RING FOR A FLATTER RESPONSE AND LOWER DISTORTION
• TIGHT CLEAN BASS AND NICE NATURAL SOUNDING MIDS & WIDE FREQUENCY RANGE FROM 60HZ TO 6.0KHZ
• WEIGHS ONLY 2.6 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MID-BASS / BASS IN 2 OR 3-WAY SPEAKER SYSTEMS
• AVAILABLE IN 8 & 16 OHMS

THE 6RS140 HAS A SOFT SOUNDING LOUD MID-BASS THAT HAS LOW DISTORTION W/ 400 WATTS POWER HANDLING!
	8 Ohm Version Item Price: $176.95
	16 Ohm Version Item Price: $176.95
WOOFER MODEL	6RS140
Specifications
Nominal Basket Diameter	6.5" / 160mm
Impedance	8 & 16 ohms
AES Power Rating	200 Watts
Program Power	400 Watts
Frequency Response	60Hz - 6.0kHz
Sensitivity (1W/1m)	93dB SPL
Voice Coil Diameter	1.73" / 44mm
Winding Depth	.52" / 13.2 mm
Magnetic Gap Depth	.24" / 6.0 mm
X Damage	11.6 mm
Flux Density	1.5 T
BL Factor	11 N/A
Mounting Information
Overall Diameter	7.34"/6.37" / 186.5mm/162
Bolt Circle Diameter	6.77" / 172mm
Baffle Cutout Diameter-Front Mount	5.79" / 147mm
No. Of Mounting Holes	4
Overall Depth	2.99" / 76mm
Flange & gasket Thickness	0.43" / 11mm
Net Weight	2.6 lb. / 1.2 kg.
Shipping Weight	2.9 lb. / 1.3 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Rubber
Surround Shape	Half Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Demodulation Ring	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	65 Hz
Impedance (Re)	5.3 ohms
Coil Inductance (Le)	0.28 mH
Mechanical Q (Qms)	5.8
Electrical Factor (Qes)	.28
Total Q (Qts)	.27
Comp. Equivelant Vol. (Vas)	0.28 ft3 / 8 Liters
Voice Coil Overhang (Xmax)	5.6 mm
Surface Area of Cone (Sd)m2	0.01226m2
Reference Efficiency	1.63%
Diaphragm Mass (Mms)	16 Grams
Mechanical Compliance (Cms)	.37 mm/N
Mechanical Resistance (Rms)	1.12 Kg/s

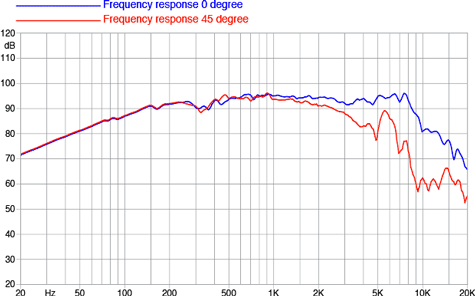

Frequency Response

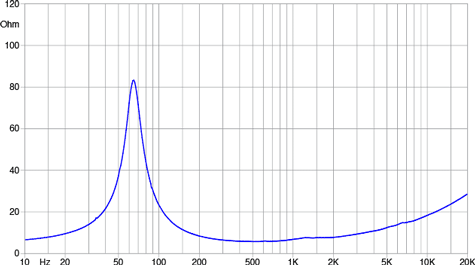

Free Air Impedance Curve

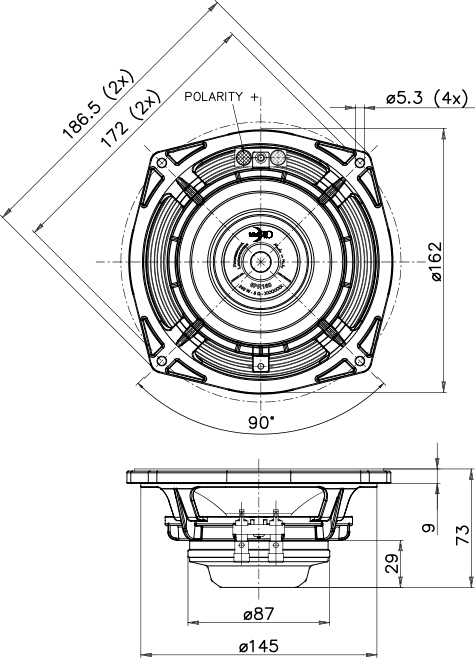

Mounting Dimensions
