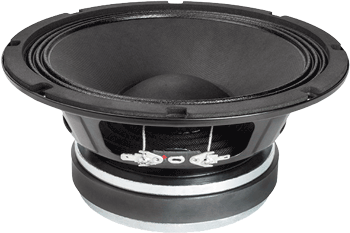

FAITAL PRO 8FE300 - 8" MID-BASS SPEAKER

FAITAL PRO 8FE300 IS A POWERFUL 8" SPEAKER W/ A TIGHT CLEAN SOUND, WEIGHS 6.8LBS. & HANDLES 250 WATTS AES!

Faital Pro 8FE300

Now In Stock

Item Price: $87.99

WOOFER MODEL 8FE300

Specifications

Nominal Basket Diameter 8" / 200mm
Impedance 8 ohms
AES Power Rating 250 Watts
Program Power 500 Watts
Frequency Response 50Hz - 5.0kHz
Sensitivity (1W/1m) 95dB SPL
Voice Coil Diameter 2.05" / 52mm
Winding Depth 13.7 mm
Magnetic Gap Deptht 8 mm
X Damage 11.6 mm
BL Factor 11.3 N/A

Mounting Information

Overall Diameter 8.23" / 209mm
Bolt Circle Diameter 7.78" / 197.5mm
Baffle Cutout Diameter-Front Mount 7.2" / 183mm
No. Of Mounting Holes 8
Overall Depth 3.74" / 95mm
Flange & Gasket Thickness 0.28" / 7mm
Net Weight 6.8 lb. / 3.1 kg.
Shipping Weight 8.58 lb. / 3.9 kg.

Materials

Basket Steel
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 70 Hz
Impedance (Re) 5.8 ohms
Coil Inductance (Le) 0.55 mH
Mechanical Q (Qms) 13.4
Electrical Factor (Qes) .46
Total Q (Qts) .44
Comp. Equivelant Vol. (Vas) 0.55 ft3 / 15.7 Liters
Voice Coil Overhang (Xmax) 5.52 mm
Surface Area of Cone (Sd)m2 0.0223m2
Reference Efficiency 1.3%
Diaphragm Mass (Mms) 22.9 Grams
Mechanical Compliance (Cms) .23 mm/N
Mechanical Resistance (Rms) .8 Kg/s

Frequency Response

Faital Pro 8FE300 Frequency

Free Air Impedance Curve
Faital Pro 8FE300 Impedance

Mounting Dimensions

Faital Pro 8FE300 Drawing
