• THE NEW FAITAL PRO 8FE400 8" SPEAKER CAN HANDLE 200 WATTS AES & 400 WATTS PROGRAM POWER
• EFFICIENCY OF 96DB SPL & A 4.77MM XMAX FOR CLEAN SOUND
• POWERFUL TIGHT MIDRANGE SPEAKER WITH A FREQUENCY RANGE FROM 100HZ TO 6.0KHZ & WEIGHS ONLY 6.1 LBS.
•  LIGHT CONE WEIGHT OF 20.5 GRAMS AND A LOW LE OF .44MH FOR FLATTER UPPER MIDRANGE
• WORKS GREAT AS A  MIDRANGE SPEAKER IN 2 OR 3-WAY PA SPEAKER SYSTEMS, STAGE MONITORS, ETC.
• AVAILABLE IN 8 OHMS

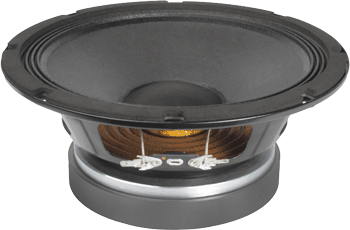

FAITAL PRO 8FE400 IS AN 8 INCH MIDRANGE SPEAKER THAT HAS HAS LOUD CLEAN MIDRANGE & HANDLES 200 WATTS AES!
	Item Price: $85.99
WOOFER MODEL	8FE400
Specifications
Nominal Basket Diameter	8" / 200mm
Impedance	8 ohms
AES Power Rating	200 Watts
Program Power	400 Watts
Frequency Response	100Hz - 6.0kHz
Sensitivity (1W/1m)	96dB SPL
Voice Coil Diameter	1.73" / 44mm
Winding Depth	.48" / 12.2 mm
Magnetic Gap Depth	.31" / 8 mm
X Damage	15.5 mm
BL Factor	10.5 N/A
Mounting Information
Overall Diameter	8.23" / 209mm
Bolt Circle Diameter	7.76" / 197mm
Baffle Cutout Diameter-Front Mount	7.2" / 183mm
No. Of Mounting Holes	8
Overall Depth	3.78" / 96mm
Flange & Gasket Thickness	0.28" / 7mm
Net Weight	6.1 lb. / 2.78 kg.
Shipping Weight	6.5 lb. / 2.95 kg.
Materials
Basket	Steel
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Aluminum
Voice Coil	Aluminum
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	100 Hz
Impedance (Re)	5.0 ohms
Coil Inductance (Le)	0.44 mH
Mechanical Q (Qms)	5.3
Electrical Factor (Qes)	.58
Total Q (Qts)	.53
Comp. Equivelant Vol. (Vas)	0.33 ft3 / 9.4 Liters
Voice Coil Overhang (Xmax)	4.77 mm
Surface Area of Cone (Sd)m2	0.0233m2
Reference Efficiency	1.56%
Diaphragm Mass (Mms)	20.5 Grams
Mechanical Compliance (Cms)	.12 mm/N
Mechanical Resistance (Rms)	2.4 Kg/s

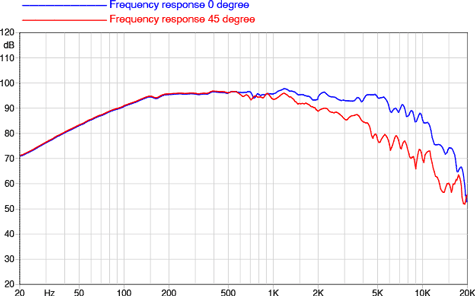

Frequency Response

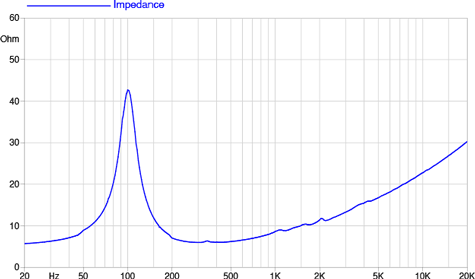

Free Air Impedance Curve

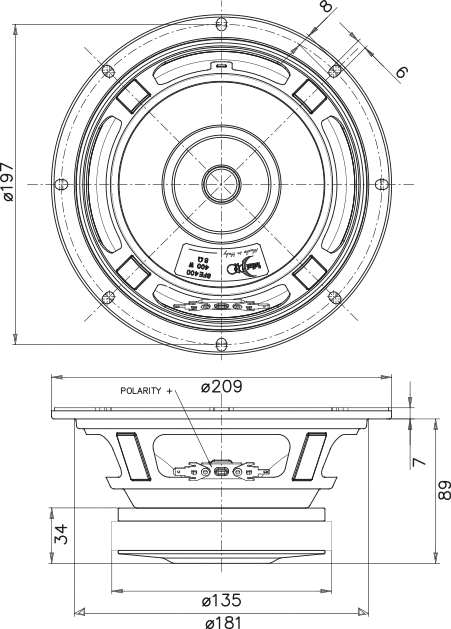

Mounting Dimensions
