FAITAL PRO 8HX150 - 8" COAXIAL SPEAKER
|
|
|
FAITAL PRO 8HX150 - 8" COAXIAL SPEAKER |
|
8HX150 8" COAXIAL SPEAKER HAS A KETONE POLYMER DIAPHRAGM THAT HELPS KEEP THE HIGH FREQUENCY SMOOTH SOUNDING! |
|
|
|
Item Price: $252.95 |
| COAXIAL MODEL | 8HX150 |
|
Specifications |
|
|
Low Frequency |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
250 Watts |
| Program Power | 500 Watts |
| Frequency Response | 75Hz - 4.0kHz |
|
Sensitivity
(1W/1m) |
94dB SPL |
| Voice Coil Diameter | 2.56" / 65mm |
| Voice Coil Length | 12.5 mm |
| Air Gap Height | 8.0 mm |
| X Damage | 10.25 mm |
| BL Factor | 11.6 N/A |
|
High Frequency |
|
|
AES
Power Rating |
15 Watts |
| Program Power | 30 Watts |
| Frequency Response | 1.5kHz - 18kHz |
| Sensitivity (1W/1m) | 104dB SPL |
| Voice Coil Diameter | 1" / 25mm |
| Winding Depth | 1.7mm |
| Magnetic Gap Depth | 2.0 mm |
| Flux Density | 1.3 T |
| Minimum Crossover Frequency | 1.7kHz |
| Dispersion Angle | 90° |
|
Mounting Information |
|
| Overall Diameter | 8.81"/8.19" / 223.75mm/207.9mm |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter-Front Mount | 7.2" / 183mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.4 / 111.7mm |
| Flange & Gasket Thickness | 0.42" / 10.7mm |
| Net Weight | 7.9 lb. / 3.6 kg. |
| Shipping Weight | 9.5 lb. / 4.3 kg. |
|
Materials |
|
|
Low Frequency |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
High Frequency |
|
| Voice Coil | Aluminum |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Dome |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 76 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 0.51 mH |
| Mechanical Q (Qms) | 9.5 |
| Electrical Factor (Qes) | .43 |
| Total Q (Qts) | .41 |
| Comp. Equivelant Vol. (Vas) | 0.42 ft3 / 11.9 Liters |
| Voice Coil Overhang (Xmax) | 4.92 mm |
| Surface Area of Cone (Sd)m2 | 0.0205m2 |
| Reference Efficiency | 1.67% |
| Diaphragm Mass (Mms) | 22 Grams |
| Mechanical Compliance (Cms) | .2 mm/N |
| Mechanical Resistance (Rms) | 1.0 Kg/s |
| EBP | 245 |
|

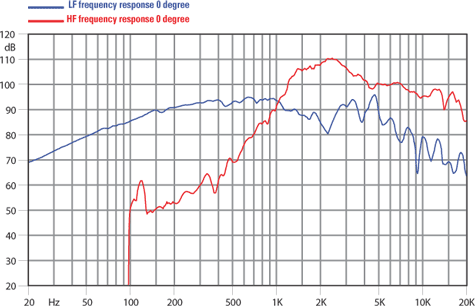

Frequency Response |
|
|
|
|

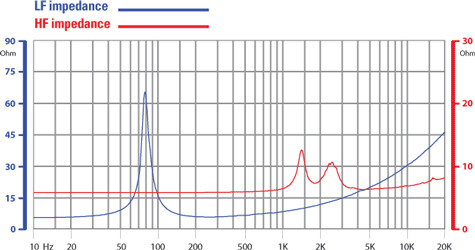

| Free Air Impedance Curve | |
 |
|
|

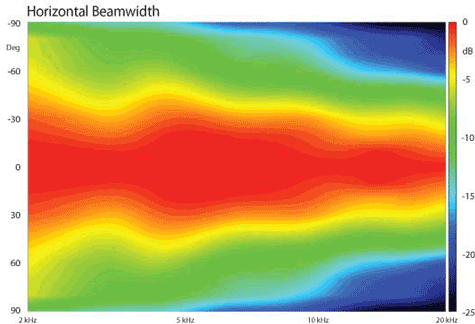

Directivity |
|
|
|
|

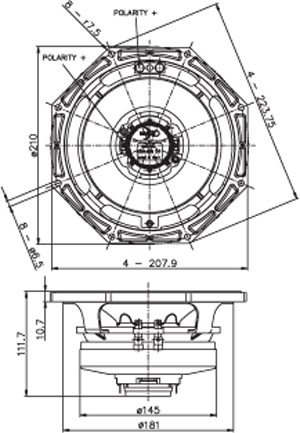

| Mounting Dimensions | |
 |
|
