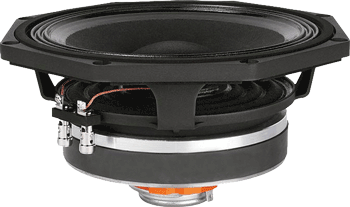

FAITAL PRO 8HX150 - 8" COAXIAL SPEAKER

THE 8HX150 8" COAXIAL SPEAKER HAS A KETONE POLYMER DIAPHRAGM THAT HELPS KEEP THE HIGH FREQUENCY SMOOTH SOUNDING!

Item Price: $416.95
COAXIAL MODEL 8HX150

Specifications

Low Frequency
Nominal Basket Diameter 8" / 200mm
Impedance 8 ohms
AES Power Rating 250 Watts
Program Power 500 Watts
Frequency Response 75Hz - 4.0kHz
Sensitivity (1W/1m) 94dB SPL
Voice Coil Diameter 2.56" / 65mm
Voice Coil Length 12.5 mm
Air Gap Height 8.0 mm
X Damage 10.25 mm
BL Factor 11.6 N/A

High Frequency
AES Power Rating 15 Watts
Program Power 30 Watts
Frequency Response 1.5kHz - 18kHz
Sensitivity (1W/1m) 104dB SPL
Voice Coil Diameter 1" / 25mm
Winding Depth 1.7mm
Magnetic Gap Depth 2.0 mm
Flux Density 1.3 T
Minimum Crossover Frequency 1.7kHz
Dispersion Angle 90°

Mounting Information
Overall Diameter 8.81"/8.19" / 223.75mm/207.9mm
Bolt Circle Diameter 8.27" / 210mm
Baffle Cutout Diameter-Front Mount 7.2" / 183mm
No. Of Mounting Holes 8
Overall Depth 4.36" / 110.7mm
Flange & Gasket Thickness 0.42" / 10.7mm
Net Weight 5.95 lb. / 2.7 kg.
Shipping Weight 7.5 lb. / 3.4 kg.

Materials

Low Frequency
Basket Cast Aluminum
Cone Paper Pulp (Weather Proof)
Surround Treated Cloth
Surround Shape Triple Roll
Former Material Glass Fiber
Voice Coil Aluminum
Magnet Ferrite

High Frequency
Voice Coil Aluminum
Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome

Thiele-Small Parameters

Resonant Frequency (fs) 76 Hz
Impedance (Re) 5.5 ohms
Coil Inductance (Le) 0.51 mH
Mechanical Q (Qms) 9.5
Electrical Factor (Qes) .43
Total Q (Qts) .41
Comp. Equivelant Vol. (Vas) 0.42 ft3 / 11.9 Liters
Voice Coil Overhang (Xmax) 4.92 mm
Surface Area of Cone (Sd)m2 0.0205m2
Reference Efficiency 1.67%
Diaphragm Mass (Mms) 22 Grams
Mechanical Compliance (Cms) .2 mm/N
Mechanical Resistance (Rms) 1.0 Kg/s
EBP 245

Frequency Response


Free Air Impedance Curve


Directivity


Mounting Dimensions
