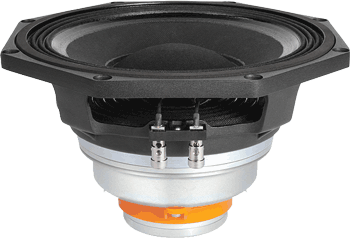

FAITAL PRO 8HX240 - NEODYMIUM 8" COAXIAL SPEAKER
|
|
|
FAITAL PRO 8HX240 - NEODYMIUM 8" COAXIAL SPEAKER |
|
THE 8HX240 8" COAXIAL SPEAKER HAS A KETONE POLYMER DIAPHRAGM THAT HELPS KEEP THE HIGH FREQUENCY SMOOTH SOUNDING! |
|
|
|
Item Price: $437.95 |
| COAXIAL MODEL | 8HX240 |
|
Specifications |
|
|
Low Frequency |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
250 Watts |
| Program Power | 500 Watts |
| Frequency Response | 70Hz - 4.0kHz |
|
Sensitivity
(1W/1m) |
94dB SPL |
| Voice Coil Diameter | 2.56" / 65mm |
| Winding Depth | .59" / 15 mm |
| Magnetic Gap Depth | .31" / 8.0 mm |
| X Damage | 15.2 mm |
| Flux Density | 1.15 T |
| BL Factor | 13.8 N/A |
|
High Frequency |
|
|
AES
Power Rating |
30 Watts |
| Program Power | 60 Watts |
| Frequency Response | 1.2kHz - 20kHz |
| Sensitivity (1W/1m) | 107dB SPL |
| Voice Coil Diameter | 1.46" / 37mm |
| Winding Depth | .08" / 2.1 mm |
| Magnetic Gap Depth | .1" / 2.6 mm |
| Flux Density | 1.85 T |
| Minimum Crossover Frequency | 1.7kHz |
| Dispersion Angle | 100° |
|
Mounting Information |
|
| Overall Diameter | 8.81"/8.18" / 223.75mm/207.9mm |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter-Front Mount | 7.13" / 181mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.94" / 125.5mm |
| Flange & Gasket Thickness | 0.42" / 10.7mm |
| Net Weight | 8.6 lb. / 3.9 kg. |
| Shipping Weight | 9.3 lb. / 4.2 kg. |
|
Materials |
|
|
Low Frequency |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Surround Shape | Triple Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Demodulation | Aluminum Ring |
| Magnet | Neodymium |
|
High Frequency |
|
| Voice Coil | Aluminum |
| Former Material | Kapton |
| Diaphragm Material | Ketone Polymer |
| Diaphragm Shape | Annular |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 70 Hz |
| Impedance (Re) | 5 ohms |
| Coil Inductance (Le) | 0.49 mH |
| Mechanical Q (Qms) | 8.1 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .3 |
| Comp. Equivalent Vol. (Vas) | 0.46 ft3 / 12.9 Liters |
| Voice Coil Overhang (Xmax) | 6.17 mm |
| Surface Area of Cone (Sd)m2 | 0.0205m2 |
| Reference Efficiency | 1.42% |
| Diaphragm Mass (Mms) | 27.7 Grams |
| Mechanical Compliance (Cms) | .19 mm/N |
| Mechanical Resistance (Rms) | 1.5 Kg/s |
| EBP | 226 |
|

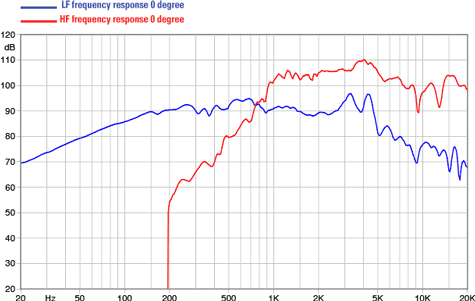

Frequency Response |
|
|
|
|

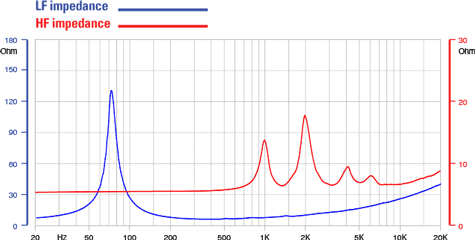

| Free Air Impedance Curve | |
 |
|
|

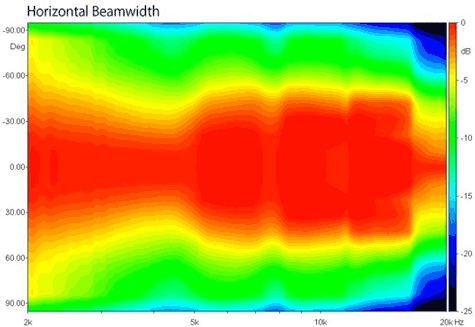

Horizontal Beamwidth |
|
|
|
|

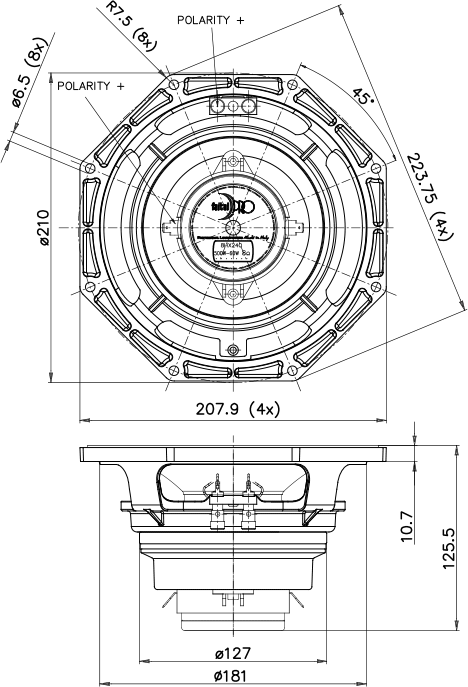

| Mounting Dimensions | |
 |
|
