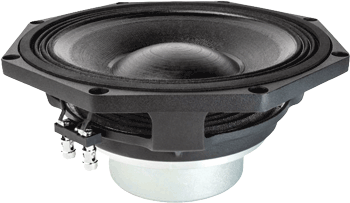

• NEW FAITAL PRO 8PR320 HIGH POWER 8" SPEAKER CAN HANDLE 300 WATTS AES & 600 WATTS PROGRAM POWER
• FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET & HIGH 7.33MM XMAX FOR CLEAN STRONG SOUND
• WIDE FREQUENCY RANGE FROM 60HZ TO 4.0KHZ
• WEIGHS ONLY 5.4 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MID-BASS IN 2 OR 3-WAY PA SPEAKER SYSTEMS, BASS GUITAR SYSTEMS, HOME HI-FI, ETC.
• AVAILABLE IN 8 OHMS

GREAT FOR ALL POWERFUL 8 INCH MID-BASS SPEAKER APPLICATIONS THAT REQUIRE A SMOOTH NATURAL SOUND!
	Item Price: $249.95
WOOFER MODEL	8PR320
Specifications
Nominal Basket Diameter	8" / 200mm
Impedance	8 ohms
AES Power Rating	300 Watts
Program Power	600 Watts
Frequency Response	60Hz - 4.0kHz
Sensitivity (1W/1m)	95dB SPL
Voice Coil Diameter	2.56" / 65mm
Winding Depth	17.4 mm
Magnetic Gap Depth	8.2 mm
X Damage	16.85 mm
BL Factor	12.9 N/A
Mounting Information
Overall Diameter	8.81"/8.18" / 223.8mm/207.9
Bolt Circle Diameter	8.27" / 210mm
Baffle Cutout Diameter-Front Mount	7.2" / 183mm
No. Of Mounting Holes	8
Overall Depth	3.92" / 99.5mm
Flange & gasket Thickness	0.43" / 11mm
Net Weight	5.4 lb. / 2.45 kg.
Shipping Weight	7.1 lb. / 3.2 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Triple Roll
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	65 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	0.52 mH
Mechanical Q (Qms)	8.2
Electrical Factor (Qes)	.43
Total Q (Qts)	.41
Comp. Equivelant Vol. (Vas)	0.46 ft3 / 13.1 Liters
Voice Coil Overhang (Xmax)	7.33 mm
Surface Area of Cone (Sd)m2	0.0223m2
Reference Efficiency	0.83%
Diaphragm Mass (Mms)	31.7 Grams
Mechanical Compliance (Cms)	.19 mm/N
Mechanical Resistance (Rms)	1.6 Kg/s

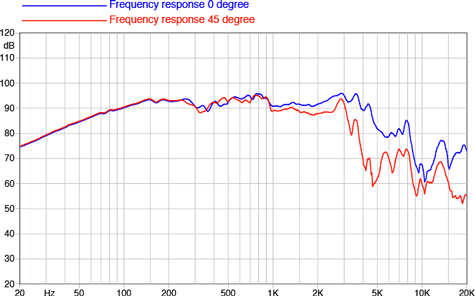

Frequency Response

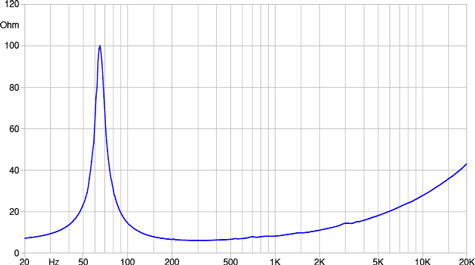

Free Air Impedance Curve

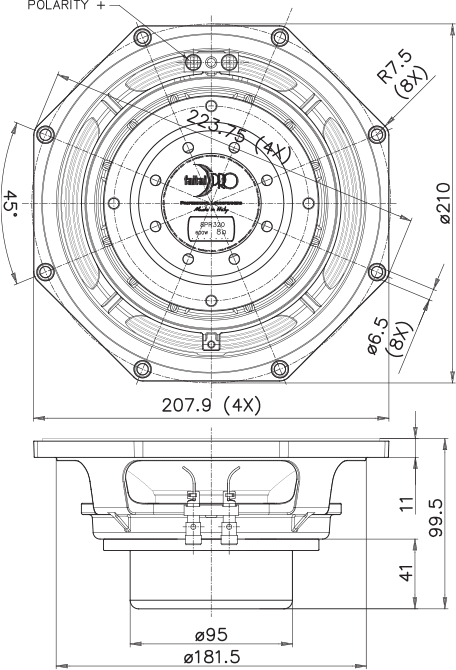

Mounting Dimensions
