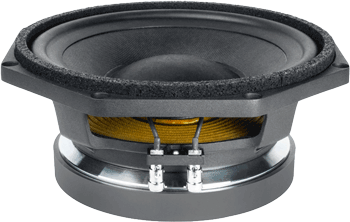

FAITAL PRO 8RS350 - 8" MID-BASS / BASS SPEAKER
|
|
|
FAITAL PRO 8RS350 - 8" MID-BASS / BASS SPEAKER |
|
FAITAL PRO 8RS350 FEATURES AN ALUMINUM DEMODULATION RING FOR A FLAT RESPONSE AND LOW DISTORTION! |
|
|
|
Item Price: $221.95 |
| WOOFER MODEL | 8RS350 |
|
Specifications |
|
|
Nominal
Basket Diameter |
8" |
|
Impedance |
8 ohms |
|
AES
Power Rating |
300 Watts |
| Program Power | 600 Watts |
| Frequency Response | 50Hz - 6.3kHz |
|
Sensitivity
(1W/1m) |
90dB SPL |
| Voice Coil Diameter | 2.56" / 65mm |
| Voice Coil Length | 17.4 mm |
| Air Gap Height | 8.0 mm |
| X Damage | 16.85 mm |
| BL Factor | 13.9 N/A |
| Flux Density | 1.2 T |
|
Mounting Information |
|
| Overall Diameter | 8.81"/8.18" / 223.8mm/207.9 |
| Bolt Circle Diameter | 8.27" / 210mm |
| Baffle Cutout Diameter-Front Mount | 7.2" / 183mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.19" / 106.5mm |
| Flange & gasket Thickness | 0.63" / 16mm |
| Net Weight | 9 lb. / 4.1 kg. |
| Shipping Weight | 10.6 lb. / 4.8 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Ferrite |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 0.6 mH |
| Mechanical Q (Qms) | 6.9 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .3 |
| Comp. Equivelant Vol. (Vas) | 0.84 ft3 / 23.7 Liters |
| Voice Coil Overhang (Xmax) | 7.37 mm |
| Surface Area of Cone (Sd)m2 | 0.0226m2 |
| Reference Efficiency | .54% |
| Diaphragm Mass (Mms) | 43.3 Grams |
| Mechanical Compliance (Cms) | .33 mm/N |
| Mechanical Resistance (Rms) | 1.7 Kg/s |
|

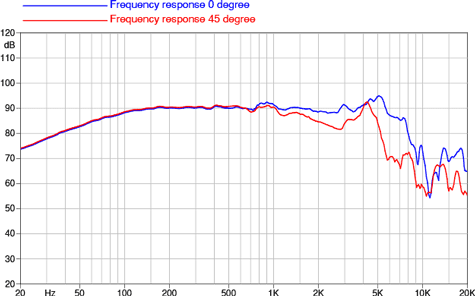

Frequency Response |
|
|
|
|

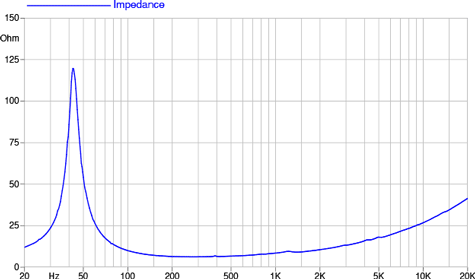

| Free Air Impedance Curve | |
 |
|
|

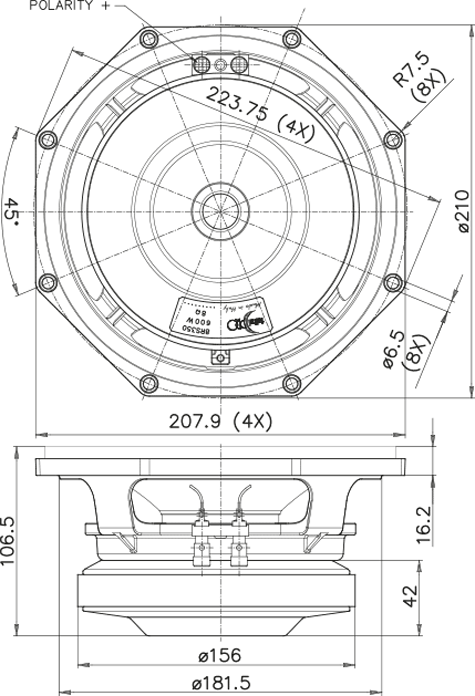

Mounting Dimensions |
|
|
|
|
