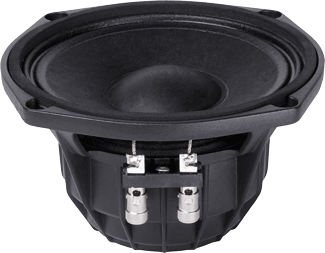

FAITAL PRO M5N8-80 - 5" MIDRANGE SPEAKER
|
|
|
FAITAL PRO M5N8-80 - 5" MIDRANGE SPEAKER |
|
THE M5N8-80 IS A SPECIALIZED 5" MIDRANGE SPEAKER THAT HANDLES 160 WATTS PROGRAM! |
|
|
|
8 ohm version
Item Price: $148.95 |
|
12 ohm version
Item Price: $148.95 |
|
| WOOFER MODEL | M5N8-80 |
|
Specifications |
|
|
Nominal
Basket Diameter |
5" |
|
Impedance |
8 or 12 ohms |
|
AES
Power Rating |
80 Watts |
| Program Power | 160 Watts |
| Frequency Response | 180Hz - 6.3kHz |
|
Sensitivity
(1W/1m) |
99dB SPL |
| Voice Coil Diameter | 1.26" / 32mm |
| Voice Coil Length | 7.5 mm |
| Air Gap Height | 6.0 mm |
| X Damage (peak to peak) | 15.2 mm |
| BL Factor | 11.3 N/A |
|
Mounting Information |
|
| Overall Diameter | 6.02"/5.51" / 153mm/140mm |
| Bolt Circle Diameter | 5.5" / 139mm |
| Baffle Cutout Diameter-Front Mount | 5.0" / 127mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 3.1" /79mm |
| Flange & gasket Thickness | 0.29" / 7.5mm |
| Net Weight | 2.1 lb. / .09 kg. |
| Shipping Weight | 2.4 lb. / 1.1 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Magnet | Neodymium |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 180 Hz |
| Impedance (Re) | 7.2 ohms |
| Coil Inductance (Le) | 0.15 mH |
| Mechanical Q (Qms) | 2.7 |
| Electrical Factor (Qes) | .59 |
| Total Q (Qts) | .48 |
| Comp. Equivelant Vol. (Vas) | 0.033 ft3 / .94 Liters |
| Voice Coil Overhang (Xmax) | 2.75 mm |
| Surface Area of Cone (Sd)m2 | 0.0146m2 |
| Reference Efficiency | 1.23% |
| Diaphragm Mass (Mms) | 8.4 Grams |
| Mechanical Compliance (Cms) | .075 mm/N |
| Mechanical Resistance (Rms) | 3.93 Kg/s |
|

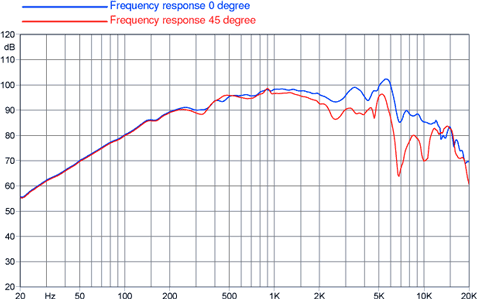

Frequency Response |
|
|
|
|

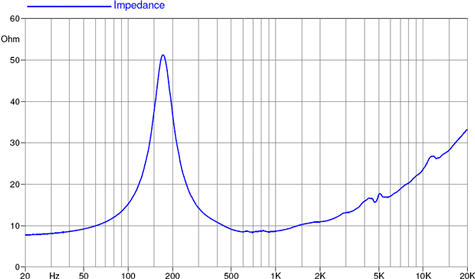

| Free Air Impedance Curve | |
 |
|
|

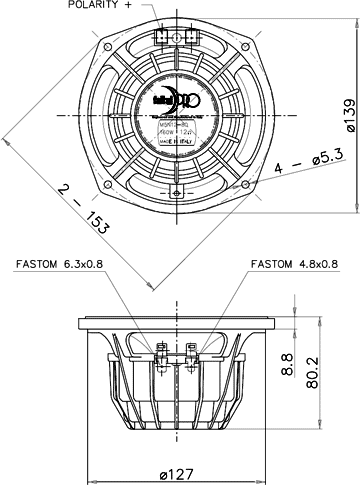

Mounting Dimensions |
|
|
|
|
