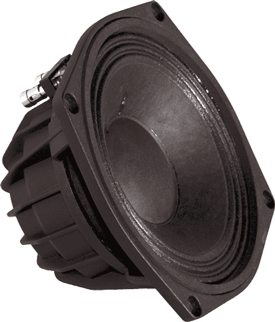

• THE NEW FAITAL PRO W6N8-150 6.5" MIDRANGE SPEAKER CAN HANDLE 150 WATTS AES & 300 WATTS PROGRAM POWER
• EFFICIENCY OF 94DB SPL & A 3.9MM XMAX FOR CLEAN TIGHT SOUND
• FREQUENCY RANGE FROM 100HZ TO 5.0KHZ
• WEIGHS ONLY 3.08 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MIDRANGE  IN 2 OR 3-WAY PA SPEAKER SYSTEMS

THE W6N8-150 HAS SMOOTH MIDRANGE W/ 3.9MM XMAX & 300 WATTS POWER HANDLING!
	Item Price: $118.95
WOOFER MODEL	W6N8-150
Specifications
Nominal Basket Diameter	6.5" / 160mm
Impedance	8 ohms
AES Power Rating	150 Watts
Program Power	300 Watts
Frequency Response	100Hz - 5.0kHz
Sensitivity (1W/1m)	94dB SPL
Voice Coil Diameter	2" / 52mm
Voice Coil Length	9.8 mm
Air Gap Height	6.0 mm
X Damage (peak to peak)	11.6 mm
BL Factor	10.8 N/A
Mounting Information
Overall Diameter	7.34"/6.37" / 186.5mm/162
Bolt Circle Diameter	6.77" / 172mm
Baffle Cutout Diameter-Front Mount	5.7" / 145mm
No. Of Mounting Holes	8
Overall Depth	3.43" / 87.2mm
Flange & gasket Thickness	0.29" / 7.5mm
Net Weight	3.08 lb. / 1.4 kg.
Shipping Weight	3.52 lb. / 1.6 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	100 Hz
Impedance (Re)	5.3 ohms
Coil Inductance (Le)	0.25 mH
Mechanical Q (Qms)	5.8
Electrical Factor (Qes)	.34
Total Q (Qts)	.32
Comp. Equivelant Vol. (Vas)	0.137 ft3 / 3.88 Liters
Voice Coil Overhang (Xmax)	3.9 mm
Surface Area of Cone (Sd)m2	0.0114m2
Reference Efficiency	1.1%
Diaphragm Mass (Mms)	12 Grams
Mechanical Compliance (Cms)	.21 mm/N
Mechanical Resistance (Rms)	1.45 Kg/s

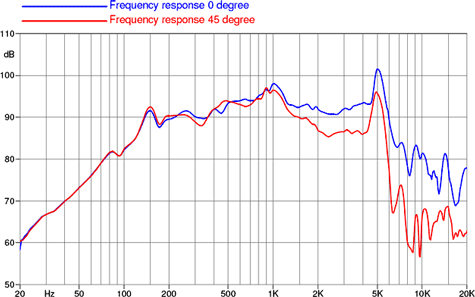

Frequency Response

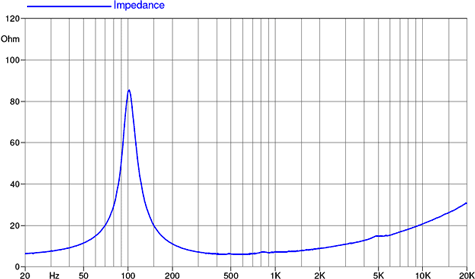

Free Air Impedance Curve

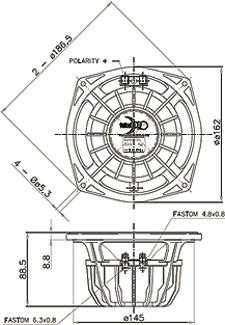

Mounting Dimensions
