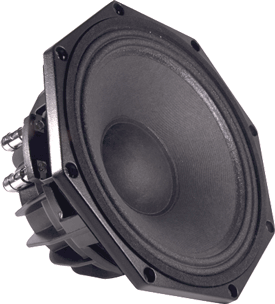

• THE  FAITAL PRO W8N8-150 8" SPEAKER CAN HANDLE 150 WATTS AES & 300 WATTS PROGRAM POWER
• EFFICIENCY OF 94DB SPL & A HIGH 5.42MM XMAX FOR CLEAN STRONG SOUND
• WIDE FREQUENCY RANGE FROM 80HZ TO 5.0KHZ
• WEIGHS ONLY 3.74 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT AS A MID-BASS SPEAKER IN 2 OR 3-WAY PA SPEAKER SYSTEMS

THE W8N8-150 HAS A CLEAN MID-BASS W/ 5.42MM XMAX & 300 WATTS POWER HANDLING!
	Item Price: $176.95
WOOFER MODEL	W8N8-150
Specifications
Nominal Basket Diameter	8" / 200mm
Impedance	8 ohms
AES Power Rating	150 Watts
Program Power	300 Watts
Frequency Response	80Hz - 6.3kHz
Sensitivity (1W/1m)	94dB SPL
Voice Coil Diameter	2" / 52mm
Voice Coil Length	13.5 mm
Air Gap Height	8.0 mm
X Damage (peak to peak)	12.0 mm
BL Factor	9.86 N/A
Mounting Information
Overall Diameter	8.81"/8.18" / 223.8mm/207.9
Bolt Circle Diameter	8.27" / 210mm
Baffle Cutout Diameter-Front Mount	7.16" / 182mm
No. Of Mounting Holes	8
Overall Depth	4.59" / 116.7mm
Flange & gasket Thickness	0.42" / 10.7mm
Net Weight	3.74lb. / 1.7 kg.
Shipping Weight	4.62 lb. / 2.1 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Glass Fiber
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	76 Hz
Impedance (Re)	5.8 ohms
Coil Inductance (Le)	0.55 mH
Mechanical Q (Qms)	4.72
Electrical Factor (Qes)	.59
Total Q (Qts)	.53
Comp. Equivelant Vol. (Vas)	0.42 ft3 / 11.89 Liters
Voice Coil Overhang (Xmax)	5.42 mm
Surface Area of Cone (Sd)m2	0.020m2
Reference Efficiency	0.85%
Diaphragm Mass (Mms)	20.9 Grams
Mechanical Compliance (Cms)	.2 mm/N
Mechanical Resistance (Rms)	2.11 Kg/s

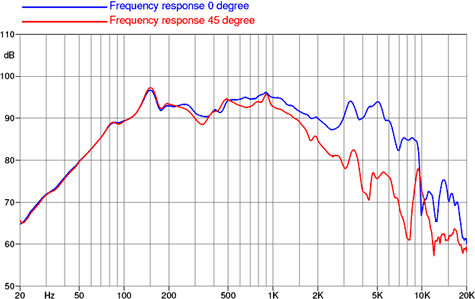

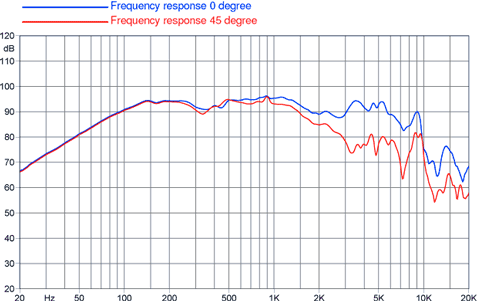

Frequency Response

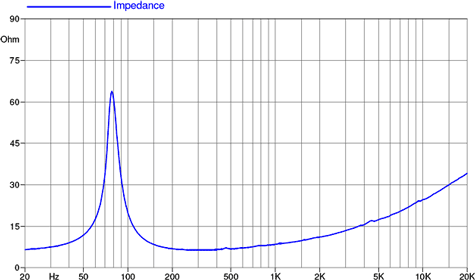

Free Air Impedance Curve

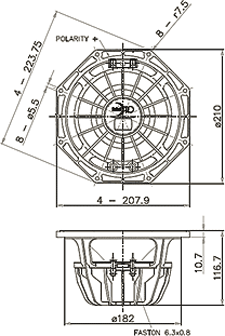

Mounting Dimensions
