• THE FAITAL PRO 2FE24 2" WIDE RANGE MID-HIGH SPEAKER CAN HANDLE 20 WATTS AES & 40 WATTS PROGRAM POWER
• WIDE FREQUENCY RANGE FROM 170HZ ALL THE WAY UP TO 20KHZ
• EFFICIENCY OF 85DB SPL & WEIGHS ONLY .33 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS GREAT FOR MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
• AVAILABLE IN 4 & 8 OHMS

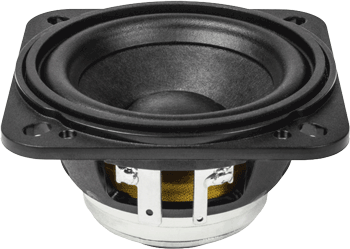

THE FAITAL PRO 2FE24 IS A HIGH QUALITY WIDE RANGE 2" SPEAKER THAT HAS A FREQUENCY RANGE FROM 170HZ TO 20KHZ!
	4 ohm version Item Price: $25.50
	8 ohm version Item Price: $25.50
WOOFER MODEL	2FE24
Specifications
Nominal Basket Diameter	2" / 80mm
Impedance	4 & 8 ohms
AES Power Rating	20 Watts
Program Power	40 Watts
Frequency Response	170Hz - 20.0kHz
Sensitivity (1W/1m)	85dB SPL
Voice Coil Diameter	.75" / 19mm
Winding Depth	4.5 mm
Magnetic Gap Depth	3 mm
X Damage (peak to peak)	5.3 mm
BL Factor	3.5 N/A
Flux Density	1.3 T-M
Mounting Information
Overall Diameter	3.46"/2.68" / 88/68mm
Bolt Circle Diameter	2.95" / 75mm
Baffle Cutout Diameter-Front Mount	2.38" / 60.5mm
No. Of Mounting Holes	4
Overall Depth	1.28" / 32.5mm
Flange & gasket Thickness	0.24" / 6mm
Net Weight	.3 lb. / .122 kg.
Materials
Basket	Polycarbonate
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Surround Shape	Half Roll
Former Material	Kapton
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	170 Hz
Impedance (Re)	6.5 ohms
Coil Inductance (Le)	0.1 mH
Mechanical Q (Qms)	1.22
Electrical Factor (Qes)	.41
Total Q (Qts)	.94
Comp. Equivelant Vol. (Vas)	0.01 ft3 / .3 Liters
Voice Coil Overhang (Xmax)	1.75 mm
Surface Area of Cone (Sd)m2	0.0201m2
Reference Efficiency	.28%
Diaphragm Mass (Mms)	19 Grams
Mechanical Compliance (Cms)	.46 mm/N
Mechanical Resistance (Rms)	.5 Kg/s

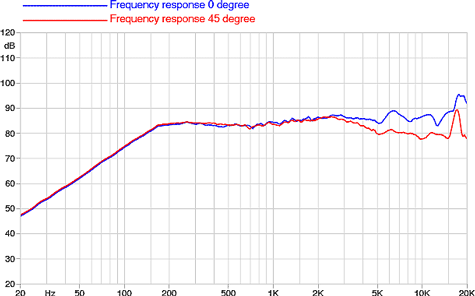

Frequency Response

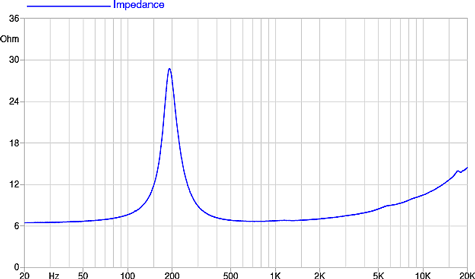

Free Air Impedance Curve

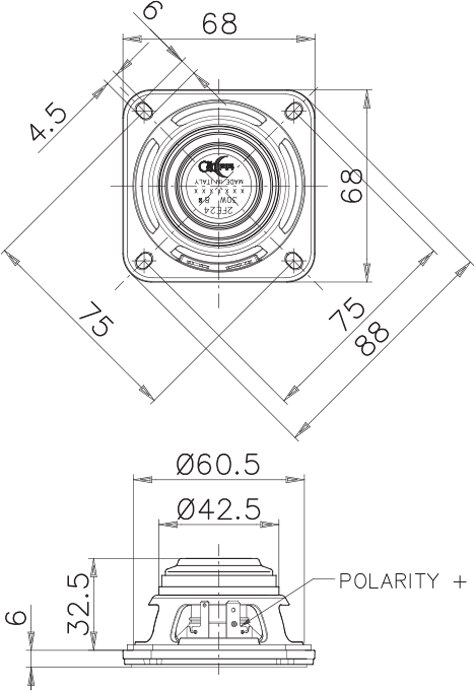

Mounting Dimensions
