• THE FAITAL PRO 3FE22 3" FULL-RANGE SPEAKER CAN HANDLE 20 WATTS AES & 40 WATTS PROGRAM POWER
• EXTREMELY WIDE FREQUENCY RANGE FROM 100HZ ALL THE WAY UP TO 20KHZ
• EFFICIENCY OF 91DB SPL & WEIGHS ONLY .53 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
• AVAILABLE IN 4, 8, & 16 OHMS

THE FAITAL PRO 3FE22 IS A HIGH QUALITY FULL-RANGE 3" SPEAKER THAT HAS A WIDE FREQUENCY RANGE FROM 100HZ TO 20KHZ!
	4 ohm version Item Price: $37.50
	8 ohm version Item Price: $37.50
	16 ohm version Item Price: $37.50
WOOFER MODEL	3FE22
Specifications
Nominal Basket Diameter	3" / 80mm
Impedance	4, 8, 16 ohms
AES Power Rating	20 Watts
Program Power	40 Watts
Frequency Response	100Hz - 20.0kHz
Sensitivity (1W/1m)	91dB SPL
Voice Coil Diameter	.75" / 19mm
Winding Depth	5 mm
Magnetic Gap Depth	4 mm
X Damage (peak to peak)	7.3 mm
BL Factor	4.5 N/A
Mounting Information
Overall Diameter	4.16"/3.19" / 105.6/81mm
Bolt Circle Diameter	3.62" / 92mm
Baffle Cutout Diameter-Front Mount	2.9" / 73.6mm
No. Of Mounting Holes	4
Overall Depth	1.55" / 39.4mm
Flange & gasket Thickness	0.26" / 6.5mm
Net Weight	.53 lb. / .24 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Kapton
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	110 Hz
Impedance (Re)	6.2 ohms
Coil Inductance (Le)	0.1 mH
Mechanical Q (Qms)	5.0
Electrical Factor (Qes)	.5
Total Q (Qts)	.45
Comp. Equivelant Vol. (Vas)	0.04 ft3 / 1.0 Liters
Voice Coil Overhang (Xmax)	1.83 mm
Surface Area of Cone (Sd)m2	0.0302m2
Reference Efficiency	.28%
Diaphragm Mass (Mms)	2.5 Grams
Mechanical Compliance (Cms)	.85 mm/N
Mechanical Resistance (Rms)	.35 Kg/s
Frequency Response
Free Air Impedance Curve

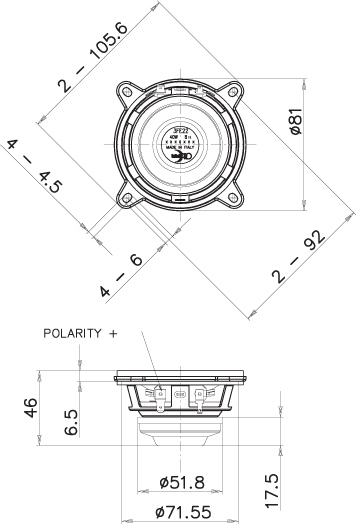

Mounting Dimensions
