• THE FAITAL PRO 3FE26 3" FULL-RANGE SPEAKER CAN HANDLE 20 WATTS AES & 40 WATTS PROGRAM POWER
• EXTREMELY WIDE FREQUENCY RANGE FROM 100HZ ALL THE WAY UP TO 20KHZ
• EFFICIENCY OF 90DB SPL & WEIGHS ONLY .53 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS GREAT FOR MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• STEEL FRAME & HALF ROLL RUBBER SURROUND
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
• AVAILABLE IN 8 OHMS ONLY

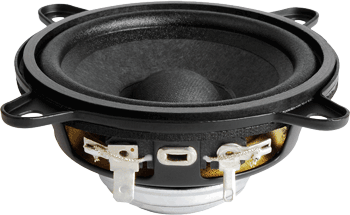

FAITAL PRO 3FE26 IS A QUALITY FULL-RANGE 3" SPEAKER THAT HAS A WIDE FREQUENCY RANGE FROM 100HZ TO 20KHZ!
	8 ohms Item Price: $30.95
WOOFER MODEL	3FE26
Specifications
Nominal Basket Diameter	3" / 80mm
Impedance	8 ohms
AES Power Rating	20 Watts
Program Power	40 Watts
Frequency Response	100Hz - 20.0kHz
Sensitivity (1W/1m)	90dB SPL
Voice Coil Diameter	.75" / 19mm
Winding Depth	5 mm
Magnetic Gap Depth	3 mm
X Damage (peak to peak)	7.9 mm
BL Factor	3.3 N/A
Mounting Information
Overall Diameter	4.16"/3.19" / 105.6/81mm
Bolt Circle Diameter	3.62" / 92mm
Baffle Cutout Diameter-Front Mount	2.9" / 73.6mm
No. Of Mounting Holes	4
Overall Depth	1.56" / 39.7mm
Flange & Gasket Thickness	0.19" / 4.7mm
Net Weight	.5 lb. / .23 kg.
Materials
Basket	Steel
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Kapton
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	150 Hz
Impedance (Re)	6.2 ohms
Coil Inductance (Le)	0.12 mH
Mechanical Q (Qms)	2.8
Electrical Factor (Qes)	1.1
Total Q (Qts)	.79
Comp. Equivelant Vol. (Vas)	0.03 ft3 / .9 Liters
Voice Coil Overhang (Xmax)	2.0 mm
Surface Area of Cone (Sd)m2	0.033m2
Reference Efficiency	.29%
Diaphragm Mass (Mms)	1.9 Grams
Mechanical Compliance (Cms)	.59 mm/N
Mechanical Resistance (Rms)	.6 Kg/s

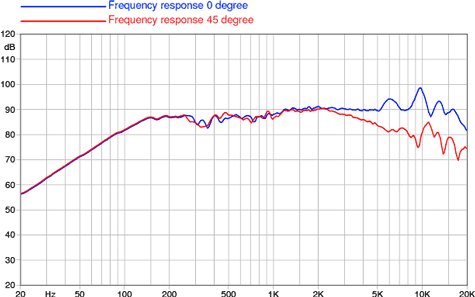

Frequency Response

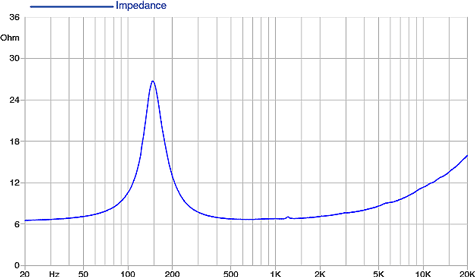

Free Air Impedance Curve

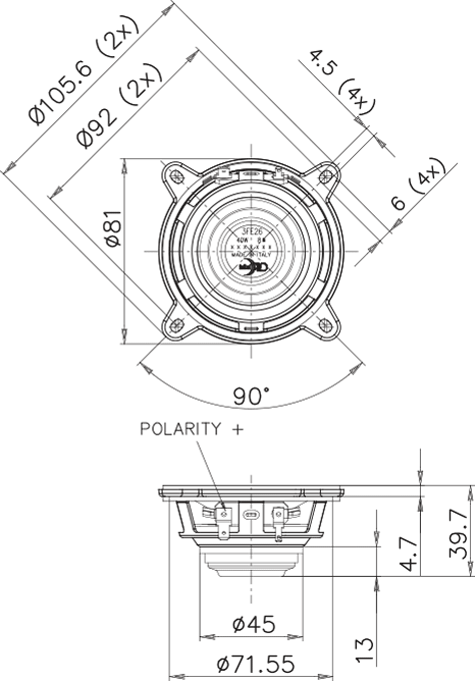

Mounting Dimensions
