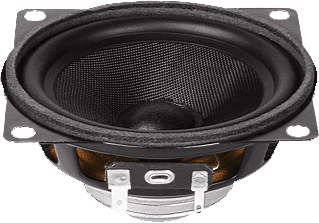

• THE FAITAL PRO 4FE30 4" MIDRANGE SPEAKER CAN HANDLE 30 WATTS AES & 60 WATTS PROGRAM POWER
• EXTREMELY WIDE FREQUENCY RANGE FROM 90HZ ALL THE WAY UP TO 20KHZ
• EFFICIENCY OF 91DB SPL & WEIGHS ONLY .6 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS

THE 4FE30 IS A ONE-OF-A-KIND HIGH QUALITY 4" SPEAKER THAT HAS A WIDE FREQUENCY RANGE FROM 90HZ TO 20KHZ!
	NO LONGER AVAILABLE REPLACED BY THE 4FE32
WOOFER MODEL	4FE30
Specifications
Nominal Basket Diameter	4" / 100mm
Impedance	8 ohms
AES Power Rating	30 Watts
Program Power	60 Watts
Frequency Response	90Hz - 20.0kHz
Sensitivity (1W/1m)	91dB SPL
Voice Coil Diameter	.75" / 19mm
Winding Depth	6.8 mm
Magnetic Gap Depth	4 mm
X Damage (peak to peak)	6.8 mm
BL Factor	4.8 N/A
Mounting Information
Overall Diameter	3.96" / 100.7mm
Bolt Circle Diameter	3.2" / 81.5mm
Baffle Cutout Diameter-Front Mount	3.68" / 93.5mm
No. Of Mounting Holes	4
Overall Depth	2" / 50mm
Flange & gasket Thickness	0.3" / 7.5mm
Net Weight	.6 lb. / .26 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Former Material	Kapton
Voice Coil	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	100 Hz
Impedance (Re)	6.5 ohms
Coil Inductance (Le)	0.18 mH
Mechanical Q (Qms)	4.9
Electrical Factor (Qes)	.6
Total Q (Qts)	.5
Comp. Equivelant Vol. (Vas)	0.014 ft3 / 4.0 Liters
Voice Coil Overhang (Xmax)	2.7 mm
Surface Area of Cone (Sd)m2	0.0636m2
Reference Efficiency	.55%
Diaphragm Mass (Mms)	4.2 Grams
Mechanical Compliance (Cms)	.6 mm/N
Mechanical Resistance (Rms)	.45 Kg/s
Frequency Response

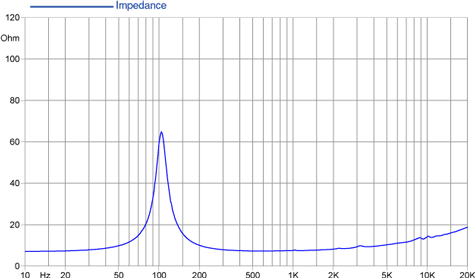

Free Air Impedance Curve

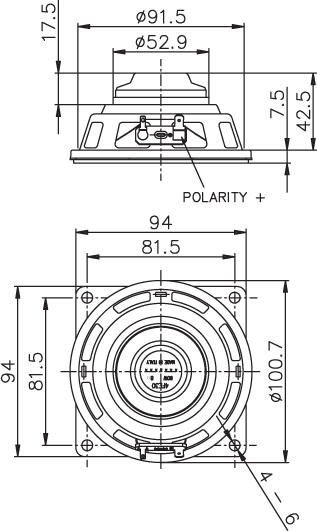

Mounting Dimensions
