• THE FAITAL PRO 4FE32 4" FULL-RANGE SPEAKER CAN HANDLE 30 WATTS AES & 60 WATTS PROGRAM POWER
• EXTREMELY WIDE FREQUENCY RANGE FROM 90HZ ALL THE WAY UP TO 20KHZ
• EFFICIENCY OF 91DB SPL & WEIGHS ONLY .6 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• MAGNET CAN NOT SHIFT BECAUSE CAST FRAME IS BUILT AROUND THE NEODYMIUM MAGNET
• WORKS IN EXTREME OUTDOOR CONDITIONS THANKS TO ITS' WATERPROOF CONE & WIDE OPERATING TEMPERATURE RANGE FROM -40C TO +120C
• WORKS GREAT FOR UPPER BASS, MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
• AVAILABLE IN 4, 8 AND 16 OHMS

THE FAITAL PRO 4FE32 IS A HIGH QUALITY FULL RANGE LIGHTWEIGHT NEODYMIUM 4" SPEAKER THAT HAS A WIDE FREQUENCY RANGE FROM 90HZ TO 20KHZ!
	4 ohm version Item Price: $45.95
	8 ohm version Item Price: $45.95
	16 ohm version Item Price: $45.95
WOOFER MODEL	4FE32
Specifications
Nominal Basket Diameter	4" / 100mm
Impedance	4, 8,16 ohms
AES Power Rating	30 Watts
Program Power	60 Watts
Frequency Response	90Hz - 20.0kHz
Sensitivity (1W/1m)	91dB SPL
Voice Coil Diameter	.75" / 19mm
Winding Depth	6.8 mm
Magnetic Gap Depth	4 mm
X Damage (peak to peak)	6.8 mm
BL Factor	4.8 N/A
Mounting Information
Overall Diameter	5.13"/3.9" / 129.85mm / 100.5mm
Bolt Circle Diameter	4.54" / 115.26mm
Baffle Cutout Diameter-Front Mount	3.6" / 91.5mm
No. Of Mounting Holes	4
Overall Depth	1.96" / 49.8mm
Flange & gasket Thickness	0.28" / 7.2mm
Net Weight	.6 lb. / .27 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Suspension	Half Roll
Former Material	Kapton
Voice Coil	Aluminum
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	100 Hz
Impedance (Re)	6.5 ohms
Coil Inductance (Le)	0.18 mH
Mechanical Q (Qms)	4.9
Electrical Factor (Qes)	.6
Total Q (Qts)	.5
Comp. Equivelant Vol. (Vas)	0.014 ft3 / 4.0 Liters
Voice Coil Overhang (Xmax)	2.73 mm
Surface Area of Cone (Sd)m2	0.048m2
Reference Efficiency	.55%
Diaphragm Mass (Mms)	4.2 Grams
Mechanical Compliance (Cms)	.6 mm/N
Mechanical Resistance (Rms)	.45 Kg/s
Frequency Response

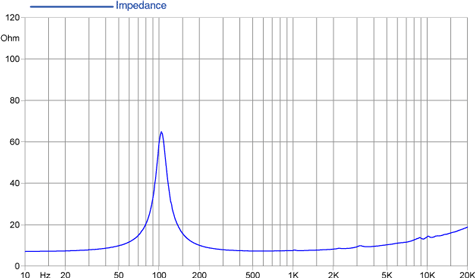

Free Air Impedance Curve

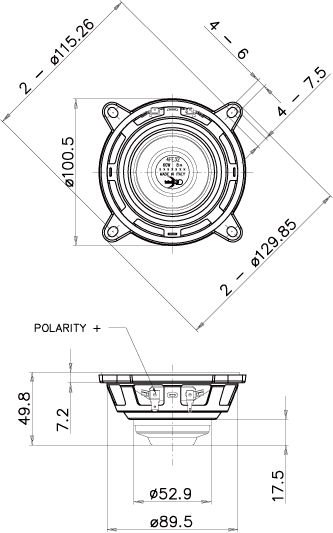

Mounting Dimensions
