• NEW THE FAITAL PRO 4FE42 4" FULL-RANGE SPEAKER CAN HANDLE 40 WATTS AES & 80 WATTS PROGRAM POWER
• EXTREMELY WIDE FREQUENCY RANGE FROM 100HZ ALL THE WAY UP TO 20KHZ
• FEATURES A COPPER DEMODULATION RING FOR A MORE EVEN FREQUENCY RESPONSE FOR LOWER DISTORTION
• EFFICIENCY OF 94DB SPL & WEIGHS ONLY .9 LBS. THANKS TO ITS' LIGHTWEIGHT NEODYMIUM MAGNET
• WORKS GREAT FOR UPPER BASS, MIDRANGE AND HIGHS IN BASS GUITAR CABINETS & 2 OR 3-WAY PA SPEAKER SYSTEMS
• ALSO DESIGNED TO WORK IN LINE ARRAY SPEAKER SYSTEMS IN RISERS
• AVAILABLE IN 4 AND 8 OHMS

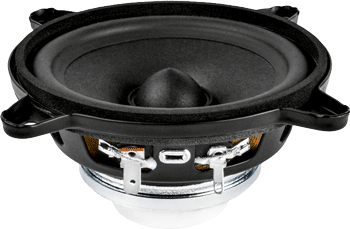

FAITAL PRO 4FE42 IS A HIGH QUALITY FULL RANGE LIGHTWEIGHT 4" SPEAKER W/ A FREQUENCY RANGE OF 100HZ TO 20KHZ!
	4 ohm version Item Price: $59.99
	8 ohm version Item Price: $59.99
WOOFER MODEL	4FE42
Specifications
Nominal Basket Diameter	4" / 100mm
Impedance	4 & 8 ohms
AES Power Rating	40 Watts
Program Power	80 Watts
Frequency Response	100Hz - 20.0kHz
Sensitivity (1W/1m)	94dB SPL
Voice Coil Diameter	.98" / 25mm
Winding Depth	7.0 mm
Magnetic Gap Depth	4 mm
X Damage (peak to peak)	5.1 mm
BL Factor	6 N/A
Mounting Information
Overall Diameter	5.13"/3.9" / 129.85mm / 100.5mm
Bolt Circle Diameter	4.54" / 115.26mm
Baffle Cutout Diameter-Front Mount	3.6" / 91.5mm
No. Of Mounting Holes	4
Overall Depth	2.13" / 54.1mm
Flange & gasket Thickness	0.28" / 7.2mm
Net Weight	.9 lb. / .39 kg.
Materials
Basket	Cast Aluminum
Cone	Paper Pulp (Weather Proof)
Surround	Treated Cloth
Suspension	Half Roll
Former Material	Kapton
Voice Coil	Aluminum
Demodulation Ring	Copper
Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (fs)	110 Hz
Impedance (Re)	5.4 ohms
Coil Inductance (Le)	0.07 mH
Mechanical Q (Qms)	8.0
Electrical Factor (Qes)	.5
Total Q (Qts)	.47
Comp. Equivelant Vol. (Vas)	0.07 ft3 / 1.9 Liters
Voice Coil Overhang (Xmax)	2.83 mm
Surface Area of Cone (Sd)m2	0.0509m2
Reference Efficiency	.59%
Diaphragm Mass (Mms)	4.0 Grams
Mechanical Compliance (Cms)	.52 mm/N
Mechanical Resistance (Rms)	.3 Kg/s

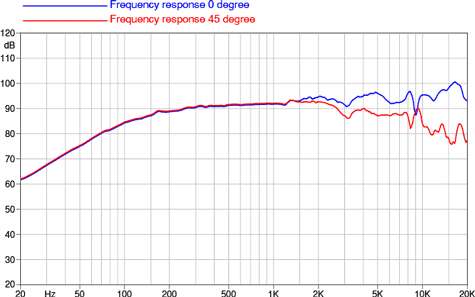

Frequency Response

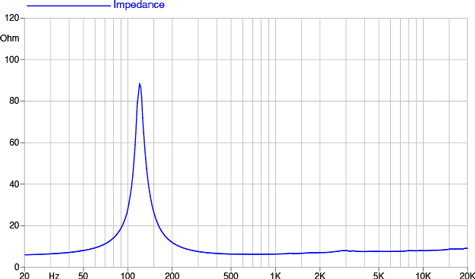

Free Air Impedance Curve

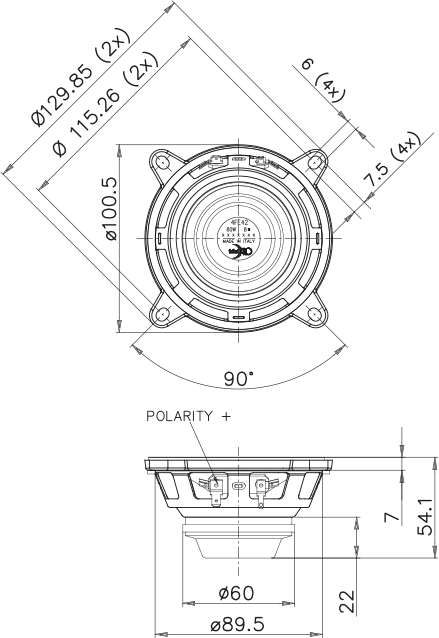

Mounting Dimensions
