2012H - 10" MID-BASS SPEAKER
|
|
|
2012H - 10" MID-BASS SPEAKER |
|
THIS JBL 10" IS A SPECIALIZED HIGH QUALITY MIDRANGE SPEAKER! |
|
|
|
NO LONGER AVAILABLE Item Price: $249.99 |
|
WOOFER
MODEL |
2012H |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
10" |
|
Impedance |
8
ohms |
| AES Continuous Pink Noise Power | 300
Watts |
|
Frequency
Response |
70Hz
- 7kHz |
|
Sensitivity
(1W/1m) |
100dB |
|
Voice
Coil Diameter |
3"
/ 76mm |
|
Max.
Crossover Frequency |
5.5kHz |
| Voice Coil Material | Edgewound Aluminum Ribbon |
| BL Factor | 15.5 Tesla Meters |
| Flux Density | 1.0 Tesala |
| Magnet Weight | 7.7 kg / 17lbs. |
| Recommended Enclosure Volume | 10-30 Liters / .35-1.05(ft3) |
|
MOUNTING INFORMATION |
|
| Overall
Diameter |
10.25" / 261mm |
| Overall Diameter (square) | 9.33" / 237mm |
| Bolt
Circle Diameter |
9.63" / 245mm |
| Baffle
Cutout Diameter |
9.0"
/ 229mm |
| No.
Of Mounting Holes |
4 |
| Overall
Depth |
4.6" / 117mm |
| Net
Weight |
8.6 kg. / 19 lbs. |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 61 Hz |
| Impedance
(Re) |
4.7 ohms |
| Coil Inductance (Le) | N/A (purely resistance at 1kHz) |
| Mechanical Q (Qms) | 4.0 |
| Electrical Q (Qes) | .22 |
| Total Q (Qts) | .21 |
| Compliance Equivalent Vol. (Vas) | 31 Liters/1.095cu. ft. |
| Voice Coil Overhang (Xmax) | 5.0mm |
| Reference Efficiency | 3.1% |
| Effective Surface Area (Sd) | .031 m2 |
|
*Positive voltage to RED terminal gives forward cone motion* |
|

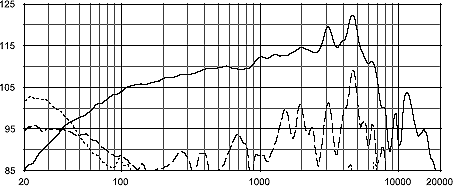

| FREQUENCY RESPONSE & DISTORTION CURVES | |
 |
|
