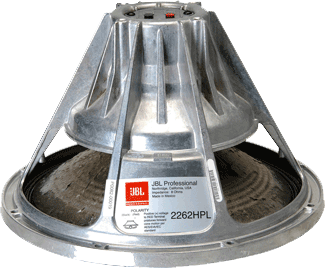

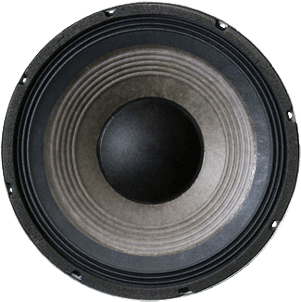

2262HPL - 12" DUAL VOICE LIGHTWEIGHT NEODYMIUM SPEAKER |
|
THE JBL 2262HPL12" SPEAKER IS A GOOD CHOICE FOR 2-WAY SPEAKER CABINETS THAT REQUIRE HIGH POWER AND LOW WEIGHT! |
|
|
|
Item Price: $349.95 |
|
WOOFER
MODEL |
2262HPL |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12" |
|
Impedance |
8
ohms |
| AES Power Handling |
700
Watts |
| Program Power Handling |
1,400
Watts |
|
Frequency
Response |
50Hz
- 1.2kHz |
|
Sensitivity
(1W/1m) |
96dB |
|
Voice
Coil Diameter |
3"
/ 76.2mm |
|
Max.
Crossover Frequency |
1.5kHz |
| Recommended Enclosure Volume | 22.7 - 56.6 Liters / 0.8 - 2.0 cu. ft. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.25" / 311mm |
| Bolt Circle Diameter | 11.625" / 294mm |
| Baffle Cutout Diameter | 11.375" / 288.9mm |
| Overall Depth | 7.375" / 187.3mm |
| Net Weight | 4.55 kg. / 10 lbs. |
|
MATERIALS |
|
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 56.8 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | 1.7mH |
| Mechanical Q (Qms) | 2.79 |
| Electrical Q (Qes) | .39 |
| Total Q (Qts) | .34 |
| Compliance Equivalent Vol. (Vas) | 49.56 Liters/1.74cu. ft. |
| Voice Coil Overhang (Xmax) | 8.0mm |
| BL Factor | 17.99 T-M |
| Diaphragm Mass (Mms) | 68 Grams |
| Reference Efficiency | 2.25% |
| Effective Surface Area (Sd) | .055 m2 |
