JBL 2382A - JBL 2382A 2" 120 x 40 horn.

COMPONENTS

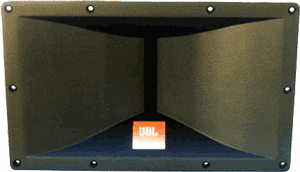

2382A -2" 120°x 40° FLAT FRONT BI-RADIAL HORN

The JBL 2382A JBL 2" horn has a wide coverage of 120°x 40°
Uniform horizontal on and off axis frequency response
Flat front, compact size and lightweight construction
To be used with the JBL 2446H and 2450H compression drivers

Delivers a wide precise horizontal and vertical pattern control
	No Longer Available

HORN MODEL	JBL 2382A
SPECIFICATIONS
Throat Diameter	2" / 49mm
Dispersion	120°H x 40°V
Average Frequency Range	500Hz - 16kHz
Usable Low Frequency Limit	400 Hz
Min. Recommended Crossover	500 Hz
Directivity Factor (Q)	7.9 (+7.9, -2.9)
Directivity Index (DI)	9 (+3, -2dB)
Axial Pressure Sensitivity	110dB
Construction Material	Molded Structural Foam
Net Weight	1.62 kg. / 3.5 lbs.
MOUNTING INFORMATION
Overall Height	11" / 279 mm
Overall Width	17.5" / 445mm
Overall Length	9.28" / 236mm
Baffle Cutout Height	9.375" / 238mm
Baffle Cutout Width	15.875" / 403mm
