Jensen 'C Series'
C12K-2 - 12" GUITAR SPEAKER
|
|
|
C12K-2 - 12" GUITAR SPEAKER |
|
THE JENSEN C12K-2 HAS A SMOOTH WARM OVERALL SOUND WITH TIGHT BASS AND NICE CLARITY! |
|
|
|
Item Price: $138.45 |
|
|
C12K-2-8 - 8 ohms |
|
SPEAKER
MODEL |
C12K-2 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 306mm |
|
RMS Power |
100
Watts |
| Program Power | 200 Watts |
|
Frequency
Response |
70Hz
-7kHz |
|
Sensitivity
(1W/1m) |
99.5dB |
|
Voice
Coil Diameter |
2" / 50mm |
| Magnet Assembly Weight | 51 oz. |
| Net Weight | 9.48lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Nomex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 10.91" / 277mm |
| Baffle Cutout Diameter | 11.56" / 293.5mm |
| Mounting Hole Diameter | .26" / 6.5mm |
| Overall Depth | 5.07" / 128.7mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 79 Hz |
| Impedance
(Re) |
6.7 ohms |
| Coil Inductance (Le) | .84mH |
| Electromagnetic Q (Qes) | .62 |
| Mechanical Q (Qms) | 12.07 |
| Total Q (Qts) | 0.47 |
| Compliance Equiv. Vol. (Vas) | 43.1 Liters/1.52cu. ft. |
| Voice Coil Overhang (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .04909 m2 |
| Moving Mass (Mms) | 32.2 Grams |
| BL Factor | 14.73 Wb/m |
| Efficiency (Half Space) % | 3.3% |
| Pe Maximum (Watts) | 200 |
|

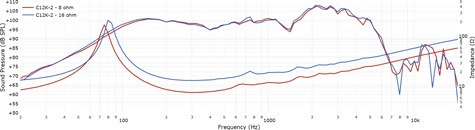

Frequency Response |
|
 |
|
