Jensen 'C Series'
C12Q - 12" GUITAR SPEAKER
|
|
|
C12Q - 12" GUITAR SPEAKER |
 |
Item Price: $83.62 |
|
 C12Q-8 - 8 ohm version |
|
C12Q-16 - 16 ohm version |
|
SPEAKER
MODEL |
C12Q |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 306mm |
|
RMS Power |
35 Watts |
| Program Power | 70 Watts |
|
Frequency
Response |
70Hz
-6kHz |
|
Sensitivity
(1W/1m) |
93.9dB |
|
Voice
Coil Diameter |
1.26"
/ 32mm |
| Magnet Assembly Weight | 15 oz. |
| Net Weight | 4.1 lbs. / 1.86 kg. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Epotex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 10.91" / 277mm |
| Overall Depth | 4.27" / 108.5mm |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 84 Hz |
| Impedance
(Re) |
6.5 ohms |
| Coil Inductance (Le) | .62mH |
| Electromagnetic Q (Qes) | 1.97 |
| Mechanical Q (Qms) | 13.26 |
| Total Q (Qts) | 1.72 |
| Compliance Equiv. Vol. (Vas) | 42.8 Liters/1.51cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Surface Area of Cone (Sd) | .04908 m2 |
| Efficiency (Half Space) % | 1.25% |
| Pe Maximum (Watts) | 70 |
|

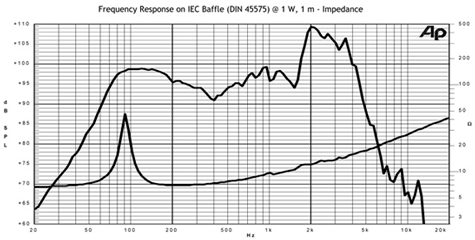

Frequency Response |
|
|
|
|
|

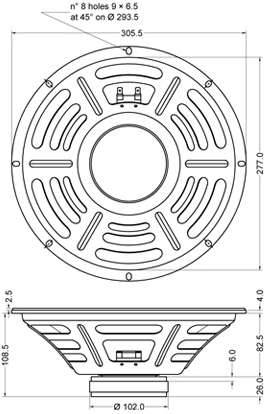

Mounting Dimensions |
|
|
|
|
