Jensen 'C Series'
C8R - 8" GUITAR SPEAKER
|
|
|
C8R - 8" GUITAR SPEAKER |
 |
Item Price: $47.91 |
 |
 C8R-4 - 4 ohm version |
|
C8R-8 - 8 ohm version |
|
|
|
C8R |
| Specifications | |
| Nominal Basket Diameter | 8" / 207mm |
| Rated Power | 25 Watts |
| Musical Power | 50 Watts |
| Frequency Response | 80Hz -8kHz |
| Sensitivity (1W/1m) | 94.4dB |
| Voice Coil Diameter | 1.0" / 25mm |
| Magnet Assembly Weight | 9.9 oz. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 7.03" / 178.5mm |
| Overall Depth | 2.83" / 71.8mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 131 Hz |
| Impedance (Re) | 3.0 ohms |
| Coil Inductance (Le) | .22mH |
| Electromagnetic Q (Qes) | 1.66 |
| Mechanical Q (Qms) |
9.65 |
| Total Q (Qts) | 1.42 |
| Compliance Equivalent Vol. (Vas) | 10.3 Liters/.36cu. ft. |
| Voice Coil Overhang (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .02138 m2 |
| Efficiency (Half Space) % | 1.34% |
| Pe Maximum (Watts) | 50 |
|

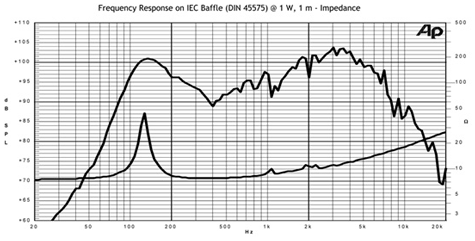

Frequency Response |
|
 |
|

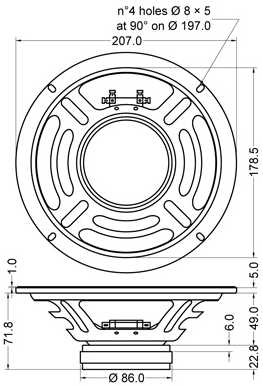

| Mounting Dimensions | |
|
|
|
