Jensen MOD Series
MOD12-110 - 12" GUITAR & BASS SPEAKER
|
|
|
MOD12-110 - 12" GUITAR & BASS SPEAKER |
 |
Item Price: $129.64 |
|
 MOD12-110-8 - 8 ohm version |
| MOD12-110-16 - 16 ohm version |
|
SPEAKER
MODEL |
MOD12-110 |
|
Specifications |
|
|
Nominal
Basket Diameter |
12"
/ 307mm |
|
Rated Power |
110
Watts |
| Musical Power | 220 Watts |
|
Sensitivity
(1W/1m) |
99.1dB |
|
Voice
Coil Diameter |
2"
/ 50mm |
| Magnet Assembly Weight | 3.2 lbs. |
| Net Weight | 9.0 lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Nomex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 10.9" / 277mm |
| Overall Depth | 4.31" / 109.5mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 85.6 Hz |
| Impedance (Re) | 7.12 ohms |
| Coil Inductance (Le) | .99mH |
| Electromagnetic Q (Qes) | .51 |
| Mechanical Q (Qms) | 14.23 |
| Total Q (Qts) | .49 |
| Compliance Equivalent Vol. (Vas) | 38.4 Liters/1.36cu. ft. |
| Voice Coil Overhang (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .04908 m2 |
| Efficiency (Half Space) % | 4.56% |
| Pe Maximum (Watts) | 220 |

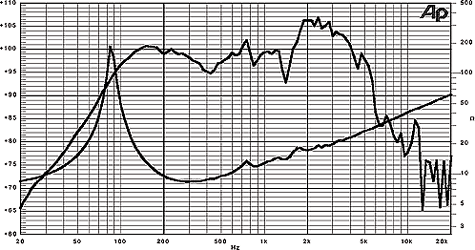

| Frequency Response Graph & Impedance Curve | |
 |
|

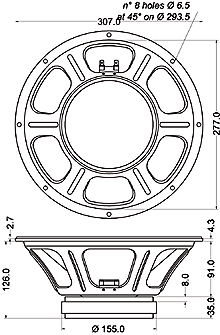

| Dimensional Drawing | |
|
|
|
