Jensen MOD Series
MOD12-50 - 12" GUITAR & BASS SPEAKER
|
|
|
MOD12-50 - 12" GUITAR & BASS SPEAKER |
 |
Item Price: $74.52 |
|
MOD12-50-8 - 8 ohm version |
|
MOD12-50-16 - 16 ohm version |
|
|
SPEAKER
MODEL |
MOD12-50 |
| Specifications | |
| Nominal Basket Diameter | 12" / 306mm |
| Rated Power | 50 Watts |
| Musical Power | 100 Watts |
|
Sensitivity
(1W/1m) |
94.3dB |
| Voice Coil Diameter | 1.25" / 32mm |
| Magnet Assembly Weight | 15 oz. |
| Net Weight | 5.0 lbs. |
| Speaker Materials | |
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Epotex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 10.9" / 277mm |
| Overall Depth | 4.27" / 108.5mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 82 Hz |
| Impedance
(Re) |
6.3 ohms |
| Coil Inductance (Le) | 0.66mH |
| Electromagnetic Q (Qes) | 1.73 |
| Mechanical Q (Qms) | 7.5 |
| Total Q (Qts) | 1.4 |
| Compliance Equivalent Vol. (Vas) | 43.6 Liters/1.54cu. ft. |
| Voice Coil Overhang (Xmax) | 1.5mm |
| Surface Area of Cone (Sd) | .04908 m2 |
| Efficiency (Half Space) % | 1.33% |
| Pe Maximum (Watts) | 100 |
|
Frequency Response Graph & Impedance Curve |
|
 |
|
|

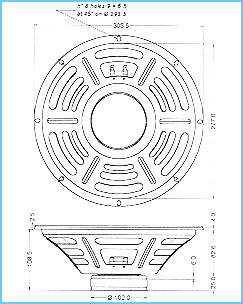

Dimensional Drawing |
|
|
|
|
