Jensen MOD Series
MOD8-20 - 8" GUITAR & BASS SPEAKER
|
|
|
MOD8-20 - 8" GUITAR & BASS SPEAKER |
 |
Item Price: $39.95 |
|
MOD8-20-4 - 4 ohm version |
|
MOD8-20-8 - 8 ohm version |
|
|
SPEAKER
MODEL |
MOD8-20 |
| Specifications | |
| Nominal Basket Diameter | 8" / 207mm |
| RMS Power | 20 Watts |
| Program Power | 40 Watts |
| Sensitivity (1W/1m) | 93.2dB |
| Voice Coil Diameter | 1.0" / 25mm |
| Magnet Assembly Weight | 5.6 oz. |
| Net Weight | 2.0 lbs. |
|
Speaker Materials |
|
| Magnet | Ferrite |
| Voice Coil Winding | Copper |
| Voice Coil Former | Epotex |
| Cone | Paper |
| Surround | Integrated Paper |
| Dust Dome | Non Treated Cloth |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | |
| Front Mount Baffle Cutout | 7.03" / 178.6mm |
| Overall Depth | 3.4" / 87.0mm |
|
Thiele-Small
Parameters |
|
| Resonant Frequency (fs) | 139 Hz |
| Impedance (Re) | 6.5 ohms |
| Coil Inductance (Le) | .5mH |
| Electromagnetic Q (Qes) | 2.2 |
| Mechanical Q (Qms) | 16.85 |
| Total Q (Qts) | 1.94 |
| Compliance Equivalent Vol. (Vas) | 9.1 Liters/.32cu. ft. |
| Voice Coil Overhang (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .02138 m2 |
| Efficiency (Half Space) % | 1.06% |
| Pe Maximum (Watts) | 40 |

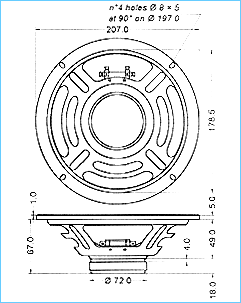

| Dimensional Drawing | |
 |
|

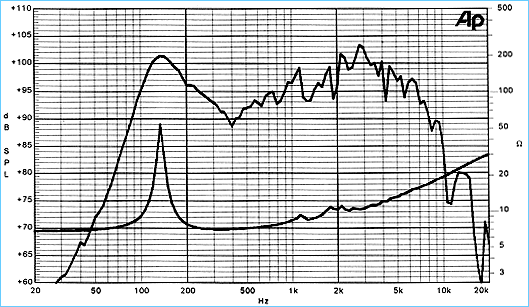

| Frequency Response | |
 |
|
