NEO15-300 - 15" BASS GUITAR SPEAKER
|
|
|
NEO15-300 - 15" BASS GUITAR SPEAKER |
|
POWERFUL LIGHTWEIGHT 15" BASS GUITAR SPEAKER SOUNDS GREAT! |
|
|
|
No Longer Available |
|
SPEAKER
MODEL |
NEO15-300 |
|
Specifications |
|
|
Nominal
Basket Diameter |
15"
/ 385mm |
|
Impedance |
8
ohms |
|
Rated Power (IEC268.5) |
300
Watts |
| Musical Power | 600 Watts |
|
Sensitivity
(1W/1m) |
99.1dB |
| Frequency Response | 50Hz - 2.5kHz |
|
Voice
Coil Diameter |
3"
/ 75mm |
| Magnet Assembly Weight | 12.78 oz./ 360 grams |
| Net Weight | 8.8 lbs. / 4.0 kg. |
|
Speaker Materials |
|
| Magnet | Neodymium |
| Voice Coil Winding | Copper |
| Voice Coil Former | Kapton |
| Cone | Paper |
| Surround | Treated Cloth |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Overall Diameter | 15.08" / 383mm |
| Front Mount Baffle Cutout | 14.09" / 358mm |
| Mounting Hole B.C.D. | 14.65" / 372mm |
| Number of Mounting Holes | 8 |
| Overall Depth | 7.0" / 177.5mm |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42.8 Hz |
| Impedance (Re) | 6.57 ohms |
| Coil Inductance (Le) | 1.22mH |
| Electromagnetic Q (Qes) | .35 |
| Mechanical Q (Qms) | 11.43 |
| Total Q (Qts) | .34 |
| Comp. Equiv. Vol. (Vas) | 194.3 Liters/6.86cu. ft. |
| Max. Displacement (Xmax) | 2.5mm |
| Surface Area of Cone (Sd) | .7547 m2 |
| Efficiency (Half Space) | 4.22% |
| Pe Maximum (Watts) | 600 |
| Flux Density | 1.2 T |

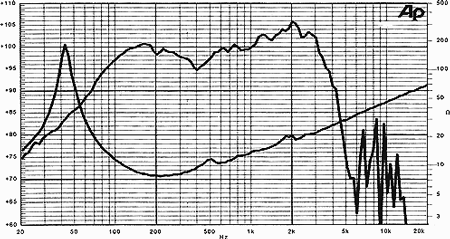

| Frequency Response | |
 |
|
