P10Q - 'P SERIES' GUITAR SPEAKER
|
|
|
P10Q - 'P SERIES' GUITAR SPEAKER |
|
|
Item Price: $159.74 |
|
|
P10Q-8 - 8 ohm version |
|
P10Q-16 - 16 ohm version |
|
SPEAKER
MODEL |
P10Q |
|
Specifications |
|
|
Nominal
Basket Diameter |
10"
/ 259mm |
|
Impedance |
8
or 16 ohms |
|
Rated Power |
40
Watts |
| Musical Power | 80 Watts |
|
Sensitivity
(1W/1m) |
95.1dB |
|
Voice
Coil Diameter |
1.26"
/ 32mm |
| Magnet Assembly Weight | 10 oz. / 300 grams |
| Net Weight | 3.65 lbs. |
|
Speaker Materials |
|
| Magnet | AlNiCo |
| Voice Coil Winding | Copper |
| Voice Coil Former | Nomex |
| Cone | Paper |
| Surround | Integrated Cloth |
| Dust Dome | Solid Paper |
| Basket | Pressed Sheet Steel |
|
Mounting Information |
|
| Front Mount Baffle Cutout | 9.1"
/ 231mm |
| Overall Depth | 116mm / 4.57" |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 88 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | .74mH |
| Electromagnetic Q (Qes) | 1.27 |
| Mechanical Q (Qms) | 10.26 |
| Total Q (Qts) | 1.13 |
| Comp. Equiv. Vol. (Vas) | 31.8 Liters/1.12cu. ft. |
| Max. Displacement (Xmax) | 1.0mm |
| Surface Area of Cone (Sd) | .033 m2 |
| Efficiency (Half Space) % | 1.65% |
| Pe Maximum (Watts) | 80 |
| Flux Density | 1.05 T |
|

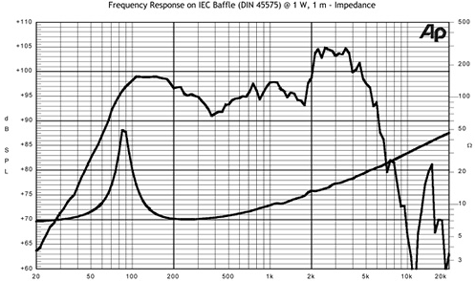

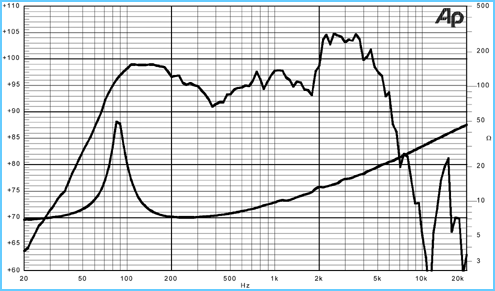

Frequency Response |
|
|
|
|
|

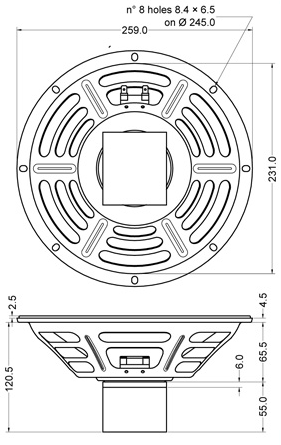

Dimensional Drawing |
|
|
|
|
