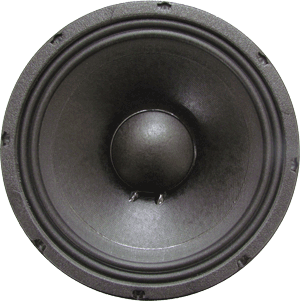

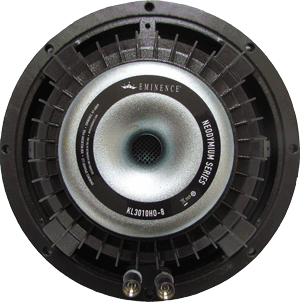

KAPPALITE KL3010HO - 10" MIDRANGE SPEAKER
|
|
|
KAPPALITE KL3010HO - 10" MIDRANGE SPEAKER |
|
THE EMINENCE KAPPALITE KL3010HO DELIVERS A LOUD CLEAN MIDRANGE W/ HIGH EFFICIENCY OF 98.8DB SPL & HANDLES 800 WATTS PROGRAM! |
|
|
|
No Longer Available |
|
WOOFER MODEL |
Kappa Lite KL3010HO |
|
SPECIFICATIONS |
|
|
Nominal Basket Diameter |
10" / 254mm |
|
Impedance |
8 ohms |
|
RMS Power Rating |
400 Watts |
| Program Power Rating | 800 Watts |
|
Frequency Response |
400Hz - 4.0kHz |
| Sensitivity | 98.8dB SPL |
|
Voice Coil Diameter |
3" / 76.2mm |
|
Magnet Weight |
11 oz. |
| Rec. Enclosure Volume(Sealed) | .35-.75cu. ft./9.91-21.24 Liters |
| Rec. Enclosure Volume(Vented) | .53-1.0cu. ft./15.01-28.32 Liters |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 10.25" / 260.35mm |
| Bolt Circle Diameter | 9.73" / 247.14mm |
| Baffle Cutout Diameter | 9.12" / 231.65mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.285" / 7.239mm |
| Overall Depth | 4.56" / 115.9mm |
| Net Weight | 6.6 lbs. / 2.99kg. |
| Shipping Weight | 8.2 lbs. / 3.72kg. |
| MATERIALS | |
| Cone | Treated Paper |
| Former Material | Fiberglass |
| Voice Coil | Edgewound Aluminum |
| Magnet | Neodymium |
| Vented Motor | Core |
| Basket | Die-Cast Aluminum |
| Surround | Sealed Cloth |
| Dust Cap | Treated Paper |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 61.97 Hz |
| Impedance (Re) | 5.57 ohms |
| Coil Inductance (Le) | .43mH |
| Electromagnetic Q (Qes) | .28 |
| Mechanical Q (Qms) | 5.75 |
| Total Q (Qts) | .27 |
| Moving Mass (Mms) | 33.65 grams |
| Compliance Suspension (Cms) | .2mm/N |
| Compliance Equivalent Vol. (Vas) | 37.21 Liters/1.31cu. ft. |
| Voice Coil Overhang (Xmax) | 4.43mm |
| Surface Area of Cone (Sd) | .03661m2 |
| BL Product (BL) | 16.05 T-M |
| Peak Diaphragm Displacement Volume(Vd) | 162.18cc |
|

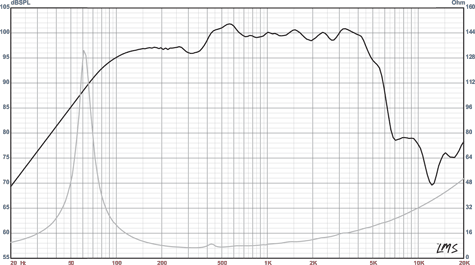

KAPPALITE KL3010HO RESPONSE CURVE |
|
|
|
|
