LEGEND BP102 - 10" BASS SPEAKER
|
|
|
LEGEND BP102 - 10" BASS SPEAKER |
|
THE EMINENCE LEGEND BP102 IS SPECIALIZED 10" FOR BASS GUITAR W/ CLEAN DEEP BASS DOWN TO 40HZ! |
|
|
Free UPS Ground Shipping in the U.S. |
LEGEND BP102-4 |
|
4 Ohm Version
Item Price: $114.99 |
|
|
LEGEND BP102-8 |
|
|
8 Ohm Version
Item Price: $114.99 |
|
|
WOOFER
MODEL |
LEGEND BP102 |
|
Specifications |
|
|
Nominal
Basket Diameter |
10" / 254mm |
| Impedance | 4 or 8 ohms |
| RMS Power Rating | 200 Watts |
| Frequency Response | 40Hz - 2.0kHz |
| Sensitivity (1W/1m) SPL |
91.8dB |
| Voice Coil Diameter | 2" / 50.8mm |
| Gap Height | 0.312" / 7.92mm |
| Rec. Enclosure Volume(Sealed) | .5-1.1cu. ft./14-31 Liters |
| Rec. Enclosure Volume(Vented) | .9-2.7cu. ft./25-75 Liters |
|
Mounting
Information |
|
| Overall Diameter | 10.08" / 256mm |
| Bolt Circle Diameter | 9.67" / 245.6mm |
| Baffle Cutout Diameter | 9.05" / 229.9mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.25" / 6.4mm |
| Overall Depth | 4.25" / 108mm |
| Magnet Weight | 38 oz. |
| Net Weight | 8.9lbs. / 4.0 kg. |
| Shipping Weight | 9.1lbs. / 4.13 kg. |
|
Materials |
|
| Basket Type | Pressed Steel |
| Voice Coil | Copper |
| Coil Former Material | Polyimide |
| Cone | Paper |
| Surround | Cloth |
| Dust Cap | Zurette |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.59 ohms |
| Coil Inductance (Le) | 0.83mH |
| Electromagnetic Q (Qes) | .47 |
| Mechanical Q (Qms) | 5.36 |
| Total Q (Qts) | .43 |
| Compliance Equivalent Vol. (Vas) | 91.2 Liters/3.2cu. ft. |
| Voice Coil Overhang (Xmax) | 6.2mm |
| BL Product (BL) | 10.0 T-M |
| Surface Area Of Cone (Sd) | .03345m2 |
|

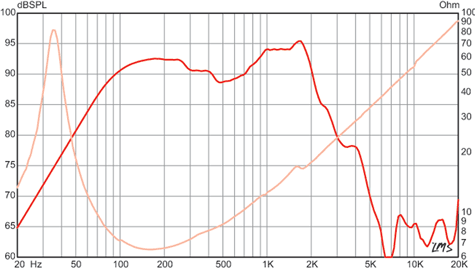

LEGEND BP102 FREQUENCY RESPONSE CURVE |
|
|
|
|
