LEGEND EM12 - LEAD GUITAR SPEAKER
|
|
|
LEGEND EM12 - LEAD GUITAR SPEAKER |
|
THE EMINENCE LEGEND EM12 IS A SMOOTH CLEAN SOUNDING SPEAKER THAT IS SIMILAR TO THE EVM-12L GUITAR SPEAKER! |
|
|
|
Item Price: $189.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | LEGEND EM12 |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
| Impedance | 8 ohms |
| RMS Power Rating | 200 Watts |
| Program Power Rating | 400 Watts |
| Usable Frequency Response | 60Hz - 4.9kHz |
|
Voice
Coil Diameter |
2.5" / 64mm |
| Sensitivity (1W/1m) | 101.1dB |
|
Magnet
Weight |
80 oz. |
| Net Weight | 16.3lbs. / 7.39kg. |
| Shipping Weight | 18lbs. / 8.16kg. |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.38" / 314.5mm |
|
Bolt
Circle Diameter |
11.57" / 293.9mm |
|
Baffle
Cutout Diameter |
11.07" / 281.2mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.26" / 6.6mm |
| Overall Depth | 5.38" / 136.5mm |
|
MATERIALS |
|
|
Basket |
Die-Cast Aluminum |
| Former | Polyimide |
| Voice Coil | Edgewound Aluminum |
| Dust Cap | Paper |
| Cone | Paper Cloth |
| Surround | Paper |
| Magnet | Ferrite |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 44 Hz |
|
Impedance
(Re) |
6.6 ohms |
| Coil Inductance (Le) | 0.49mH |
| Electromagnetic Q (Qes) | .29 |
| Mechanical Q (Qms) | 7.39 |
| Total Q (Qts) | .28 |
| Compliance Vol. (Vas) | 102.31 Liters/3.61cu. ft. |
| Voice Coil Overhang (Xmax) | 2.8mm |
| BL Product (BL) | 16.9 T-M |
| Surface Area Of Cone (Sd) | .05324m2 |
|

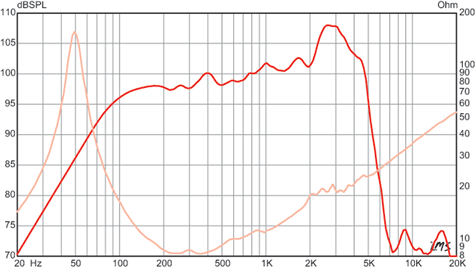

LEGEND EM12 RESPONSE CURVE |
|
|
|
|
