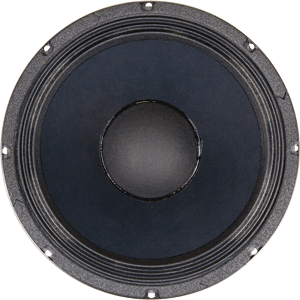

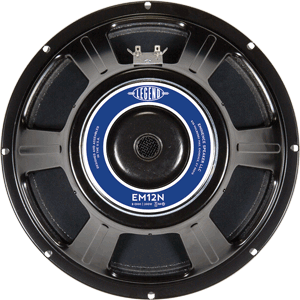

LEGEND EM12N - LIGHTWEIGHT LEAD GUITAR SPEAKER
|
|
|
LEGEND EM12N - LIGHTWEIGHT LEAD GUITAR SPEAKER |
|
THE EMINENCE LEGEND EM12N IS A LIGHTWEIGHT VERSION OF THE ELECTRO VOICE EVM-12L 12 INCH GUITAR SPEAKER! |
|
|
|
Item Price: $224.99 Free UPS Ground Shipping in the U.S. |
| SPEAKER MODEL | LEGEND EM12N |
|
SPECIFICATIONS |
|
|
Nominal
Basket Diameter |
12"
/ 304.8mm |
| Impedance | 8 ohms |
| RMS Power Rating | 200 Watts |
| Program Power Rating | 400 Watts |
| Usable Frequency Response | 60Hz - 4.2kHz |
|
Voice
Coil Diameter |
2.5" / 64mm |
| Sensitivity (1W/1m) | 99.9dB |
|
Magnet
Weight |
11 oz. |
| Gap Height | .375" / 9.5mm |
|
MOUNTING INFORMATION |
|
| Overall Diameter | 12.17" / 309.1mm |
|
Bolt
Circle Diameter |
11.75" / 298.5mm |
|
Baffle
Cutout Diameter |
11.13" / 282.7mm |
| No. Of Mounting Holes | 8 |
| Mounting Hole Diameter | 0.24" / 6.1mm |
| Overall Depth | 5" / 127mm |
| Net Weight | 6.6lbs. / 2.99kg. |
| Shipping Weight | 8.7lbs. / 3.95kg. |
|
MATERIALS |
|
|
Basket |
Pressed Steel |
| Former | Polyimide |
| Voice Coil | Edgewound Aluminum |
| Dust Cap | Paper |
| Cone | Paper |
| Surround | Cloth |
| Core | Vented |
| Magnet | Neodymium |
|
THIELE-SMALL PARAMETERS |
|
| Resonant Frequency (fs) | 51Hz |
|
Impedance
(Re) |
7.38 ohms |
| Coil Inductance (Le) | 0.49mH |
| Electromagnetic Q (Qes) | .35 |
| Mechanical Q (Qms) | 7.74 |
| Total Q (Qts) | .34 |
| Compliance Vol. (Vas) | 102.3 Liters/3.61cu. ft. |
| Voice Coil Overhang (Xmax) | 2.22mm |
| Moving Mass (Mms) |
|
| BL Product (BL) | 16 T-M |
| Surface Area Of Cone (Sd) | .05324m2 |
| Peak Diaphragm Displacement Volume (Vd) | 118.2 cc |
|

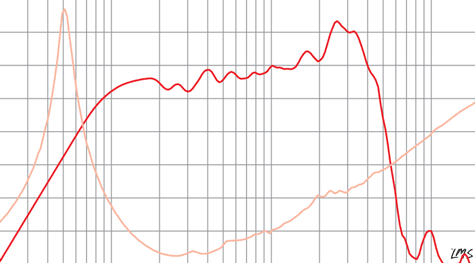

LEGEND EM12N RESPONSE CURVE |
|
|
|
|
