BMD440 - 1" HIGH FREQUENCY DRIVER

CLEAN SOUNDING 1" BOLT-ON TYPE HIGH FREQUENCY DRIVER!

BMD440



No Longer Available



H.F. DRIVER

BMD440

Specifications

Throat Diameter

1" / 25mm

Impedance

8 ohms

RMS Power Rating 60 Watts above 1.5kHz
Sensitivity (1W/1m) 106dB

Frequency Response

1.5KHz - 18kHz

Recommended Crossover 2.2 kHz or higher
Voice Coil Diameter 1.75" / 44.4mm
Mount Type Bolt-on

Materials

Diaphragm Titanium
Voice Coil Copper Clad Aluminum Wire
Voice Coil Former Kapton
Magnet Ferrite
Terminal Type Gold Plated Push

Thiele-Small Parameters

Resonant Frequency (fs) 705Hz
Impedance (Re) 6.5 ohms
BL Product (BL) 1.5 T-M

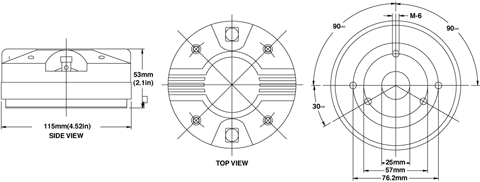

Mounting Information

Overall Diameter 4.52" / 115mm
Overall Depth 2.1" / 53mm
Mounting
- 3 threaded holes 120 apart on 2.24" diameter circle
- OR 2 threaded holes 180 apart on 3" diameter circle
Net Weight 3.78 lb. / 1.72 kg.
FREQUENCY RESPONSE
CLICK ON IMAGE FOR LARGER VIEW
