PH-220
No Longer Available
HORN MODEL
PH-220
Mounting Information
Horn Drawing
|
P.Audio |
|
PH-220 - 1" - 90°x 75° Horn |
|
|
PH-220 |
|
No Longer Available |
|
|
HORN MODEL |
PH-220 |
| Specifications | |
| Throat Size | 1" / 25mm |
| Dispersion | 90°x 75° |
| Cutoff Frequency | 800Hz |
| Mounting Type | Bolt-on |
| Construction | Cast Aluminum |
| Net Weight | 1.65 lb. / .75 kg. |
|
Mounting Information |
|
| Overall Width |
8.66"
/ 220mm |
| Overall Height | 8.66" / 220mm |
| Overall Depth | 7.26" / 184.3mm |
|

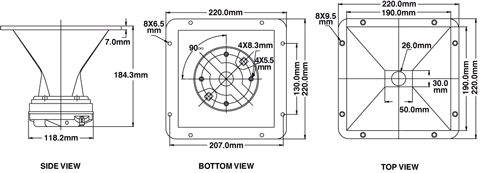

Horn Drawing |
|
|
|
|
