PHT-404
Item Price: $55.95
|
P.AUDIO |
|
PHT-404 - 1" HIGH FREQUENCY DRIVER |
|
|
PHT-404 |
|
Item Price: $55.95 |
|
H.F. DRIVER |
PHT404 |
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
20 Watts |
| Program Power | 40 Watts |
|
Sensitivity
(1W/1m) |
105dB |
|
Frequency
Response |
3KHz - 15kHz |
| Recommended Crossover | 3.0 kHz or higher |
| Voice Coil Diameter |
1"
/ 25.4mm |
| Horn Dispersion | 100°H x 60°V |
| Mount Type | Screw-on |
| Terminal Type | Solder On |
|
Materials |
|
| Diaphragm | Phenolic Resin |
| Voice Coil | Round Copper Wire |
| Magnet | Ferrite |
| Horn Material | Cast Aluminum |
|

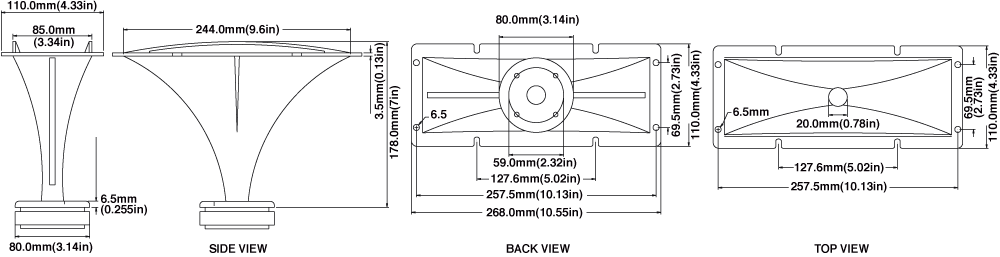

Mounting Information |
|
| Overall Horn Width | 10.59" / 269mm |
| Overall Horn Height | 4.33" / 110mm |
|
Overall
Depth |
8.05" / 204.5mm |
| Baffle Cutout Width | 9.45" / 240mm |
| Baffle Cutout Height | 3.35" / 85mm |
|
Net
Weight |
2.42 lb. / 1.1 kg. |
|
Shipping Weight |
2.86 lb. / 1.3 kg. |
|

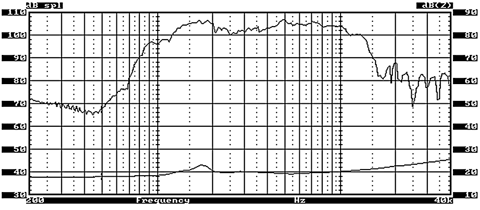

FREQUENCY RESPONSE |
|
|
|
|
|
CLICK ON IMAGE FOR LARGER VIEW |
|
|
|
|
