PHT-406
No Longer Available
|
P.AUDIO |
|
PHT-406 - HIGH FREQUENCY HORN DRIVER |
|
|
PHT-406 |
|
No Longer Available |
|
H.F. DRIVER |
PHT406 |
|
Specifications |
|
|
Throat Diameter |
1" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
30 Watts |
| Program Power | 60 Watts |
|
Sensitivity
(1W/1m) |
105dB |
|
Frequency
Response |
2KHz
- 16kHz |
| Voice Coil Diameter |
1"
/ 25.4mm |
| Dispersion | 50° Conical |
| Cutoff Frequency | 2kHz |
| Mount Type | Screw-on |
| Terminal Type | Solder On |
|
Materials |
|
| Diaphragm | Phenolic Resin |
| Voice Coil | Round Copper Wire |
| Magnet | Ferrite |
| Horn Material | ABS + Glass Fiber |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 1.3kHz |
|
Impedance |
7.2 ohms |
|
Mounting Information |
|
| Overall Horn Diameter | 4.71" / 119.6mm |
|
Overall
Depth |
4.74" / 120.5mm |
| Baffle Cutout Diameter | 3.6" / 92mm |
| Net Weight | 1.95 lb. / .9 kg. |
| Shipping Weight | 2.42 lb. / 1.1 kg. |
|

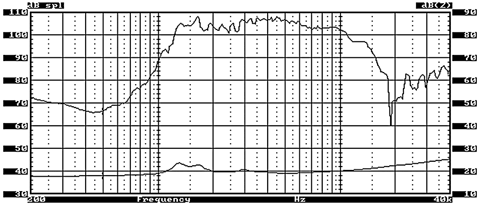

FREQUENCY RESPONSE |
|
|
|
|
|

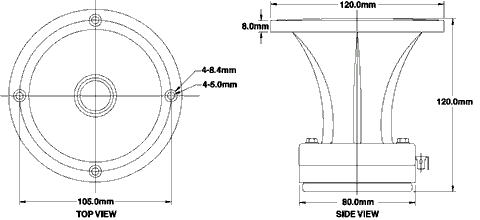

DIMENSIONS |
|
|
|
|
