2" LIGHTWEIGHT NEODYMIUM MAGNET W/ CLEAR SMOOTH SOUND!
SD750
NO LONGER AVAILABLE
|
P.AUDIO |
|
SD750 - 2" HIGH FREQUENCY DRIVER |
|
2" LIGHTWEIGHT NEODYMIUM MAGNET W/ CLEAR SMOOTH SOUND! |
|
|
|
SD750 |
|
NO LONGER AVAILABLE |
|
|
H.F. DRIVER |
SD750 |
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
ohms |
|
RMS
Power Rating |
125 Watts |
|
Sensitivity
(1W/1m) |
111dB |
|
Frequency
Response |
600Hz - 20kHz |
| Recommended Crossover | 800Hz or higher |
| Voice Coil Diameter |
2.84" / 72.1mm |
| Mount Type | Bolt-on |
|
Materials |
|
| Diaphragm | Titanium |
| Voice Coil | Anodized CCAW |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
| Terminal Type | Gold Plated Push |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 600Hz |
|
Impedance |
6.5 ohms |
| BL Product (BL) | 1.5 T-M |
|

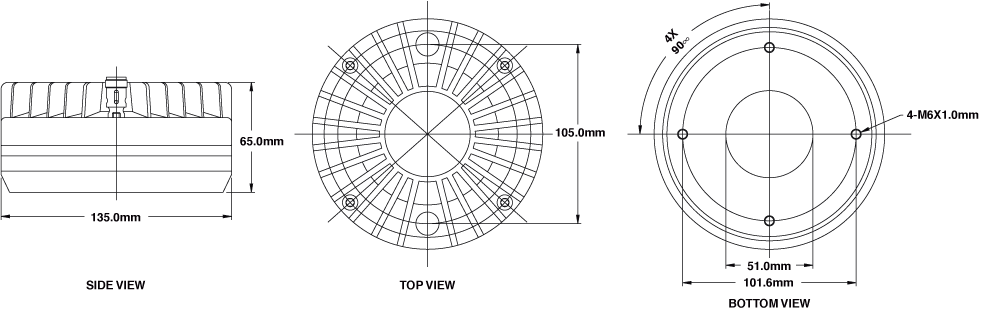

Mounting Information |
|
|
Overall Diameter |
5.3" / 135mm |
| Overall Depth |
2.59"
/ 65.9mm |
| Mounting | |
| - (4) M6 threaded holes 90° apart on 4" diameter circle | |
|
Net
Weight |
6.6 lb. / 3.0 kg. |
|

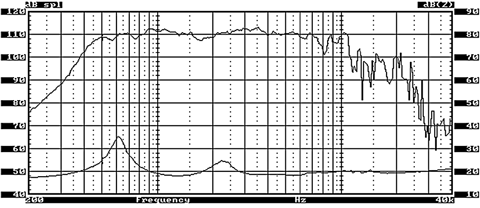

FREQUENCY RESPONSE |
|
|
|
|
|
CLICK ON IMAGE FOR LARGER VIEW |
|
|
|
|
