VERY CLEAR SMOOTH HIGHS WITH EXTRA POWER HANDLING! |
|
|
|
NEW Peavey RX22CT Item Price: $129.95 |
|
REPLACEMENT
DIAPHRAGM RX22CT-DIA:
|
|
|
PEAVEY |
|

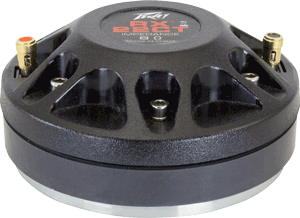

RX22CT - 1" EXTENDED H.F. COMPRESSION DRIVER |
|
VERY CLEAR SMOOTH HIGHS WITH EXTRA POWER HANDLING! |
|
|
|
NEW Peavey RX22CT Item Price: $129.95 |
|
REPLACEMENT
DIAPHRAGM RX22CT-DIA:
|
|
|
H.F. DRIVER |
RX22CT |
|
SPECIFICATIONS |
|
|
Horn Throat Exit Diameter |
1" / 25mm |
|
Impedance |
8 ohms |
| DC Resistance | 7 ohms |
|
Frequency Response |
650 Hz - 20kHz |
| RMS Power Rating | 40 Watts above 1kHz |
| Program Power Rating | 80 Watts above 1kHz |
| Peak Power Rating | 160 Watts above 1kHz |
|
Lowest Recommended Crossover |
1.0kHz |
| Recommended Crossover |
1.2kHz @
|
|
Sensitivity (SPL) |
107dB |
| Diaphragm Material | Pure Titanium |
|
Voice Coil Diameter |
2" / 50.8mm |
|
Voice Coil Material |
Copper-Clad Aluminum |
| Voice Coil Cooling | Ferrofluid |
| Nominal Efficiency | 30% |
|
Flux Density |
1.8 Tesla |
|
Net Weight |
6.13lbs. / 2.78kg. |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
5.02" / 128 mm |
|
Overall
Depth |
3.13" / 80mm |
| Horn Coupling Diameter | .96" / 24.4mm |
| Horn Coupling Thread | Standard 1.375"-18 |
