VERY CLEAR SMOOTH HIGHS WITH EXTRA POWER HANDLING! |
|
|
|
NEW Peavey RX22N Item Price: $159.99 |
|
REPLACEMENT
DIAPHRAGM RX22N-DIA:
|
|
|
PEAVEY |
|
RX22N - 1" NEODYMIUM HF COMPRESSION DRIVER |
|
VERY CLEAR SMOOTH HIGHS WITH EXTRA POWER HANDLING! |
|
|
|
NEW Peavey RX22N Item Price: $159.99 |
|
REPLACEMENT
DIAPHRAGM RX22N-DIA:
|
|
|
H.F. DRIVER |
RX22N |
|
SPECIFICATIONS |
|
|
Horn Throat Exit Diameter |
1" / 25mm |
|
Impedance |
8 ohms |
| Minimum Impedance | 5 ohms |
| DC Resistance | 4.7 ohms |
|
Frequency Response |
500 Hz - 20kHz |
| RMS Power Rating | 70 Watts above 1kHz |
| Program Power Rating | 140 Watts above 1kHz |
|
Lowest Recommended Crossover |
500
Hz |
| Recommended Crossover |
1.2kHz @
|
|
Sensitivity (SPL) |
111dB |
| Diaphragm Material | Pure Titanium |
|
Voice Coil Diameter |
2" / 50.8mm |
|
Voice Coil Material |
Edge-Wound Copper Clad Aluminum Ribbon |
| Nominal Efficiency | 30% |
|
Flux Density |
2.0 Tesla |
|
MOUNTING INFORMATION |
|
|
Overall
Diameter |
3.85" / 97.8 mm |
|
Overall
Depth |
3.01" / 76.4mm |
| Horn Coupling Diameter | 7/8" / 22.2mm |
| Horn Coupling Thread | Standard 1.375"-18 |
| Net Weight | 2.8 lbs. |
| Shipping Weight | 3.8 lbs. |
|

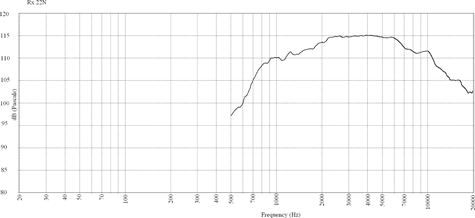

FREQUENCY RESPONSE |
|
|
|
|
|

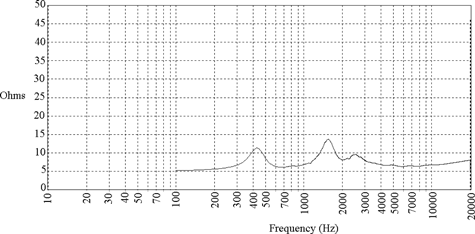

iMPEDANCE CURVE |
|
|
|
|
