POWERUS PW2500 - POWER AMPLIFIER
|
|
|
POWERUS PW2500 - POWER AMPLIFIER |
|

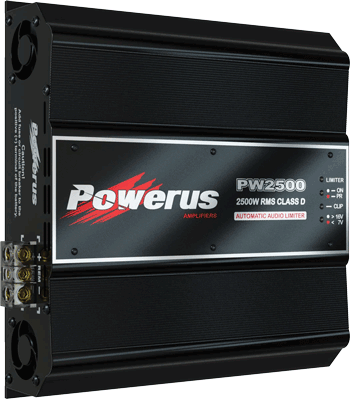

POWERUS PW2500 POWER AMPLIFIER DELIVERS 2,860 WATTS OF QUALITY POWER! |
|
|
|
PW2500 |
|
1 Ohm
Item Price: $615.95 |
|
|
2 Ohm
Item Price: $615.95 |
|
|
AMPLIFIER MODEL - PW2500 |
|
|
Specifications |
|
|
Power RMS @ 12.6V |
2,500 Watts |
|
Power RMS @ 14.4V |
2,860 Watts |
| Frequency Response | 5Hz - 45kHz (-3dB) |
| High Pass Filter | 5Hz - 200Hz |
| Low Pass Filter | 80Hz - 20kHz |
| Bass Boost | 0 - 18dB |
| Variable Boost Frequency | 28Hz - 400Hz |
|
Supply Voltage / Power Supply |
7Vdc ~ 16V dc |
| Consumption at Rest |
|
|
Music Consumption |
<75 Amps |
|
Maximum Consumption |
<318 Amps @ 40Hz |
|
Efficiency |
75% |
| Input Impedance | 22K Ohms |
| Input Sensitivity | .25 V - 6.0 V |
| Total Harmonic Distortion | 0.1% THD |
| Signal To Noise Ratio | >90dB |
| Damping Factor @ 40Hz | >1000 |
| Variable Threshold Limiter | Yes |
|
Dimensions |
|
| Overall Height |
|
| Overall Width |
11"
/ 280mm |
| Overall Length |
101.2"
/ 260mm |
| Shipping Weight | 8.58 lbs. / 3.9 kg. |
|
Side View |
|
|
|
|
