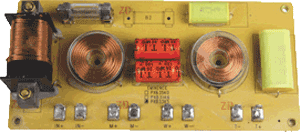

Eminence pxb3-3k5. The Eminence pxb3 3k5 is a 3500Hz and 500Hz 3-way crossover. The Eminence pxb3-3k5 3.5kHz and 500hz 3-way crossover handles 400 watts RMS.

Genuine Eminence

THE EMINENCE PXB3-3K5 IS A 3-WAY BOARD ONLY CROSSOVER THAT HANDLES 400 WATTS RMS
THE PXB3-3K5 HAS CROSSOVER POINTS OF 500HZ & 3.5KHZ
INCLUDES A PROTECTIVE DUAL AEROSPACE BULB FOR THE HIGH FREQUENCY
PX CROSSOVERS ARE TECHNICALLY SUPERIOR PASSIVE FILTERS WITH FITTED HARDWARE FOR A SMART, ECONOMICAL 'FACTORY-FIT' FINISH

THE EMINENCE PXB3-3K5 THREE WAYY CROSSOVER IS DESIGNED TO WORK IN HIGH-POWER 3-WAY SPEAKER CABINETS!
	Item Price: $104.99
CROSSOVER MODEL	pxb3-3k5
SPECIFICATIONS
Type	3-Way
Cabinet Ready	No
Crossover Frequency	500Hz / 3.5kHz
Slope – Low Frequency	12dB/octave Butterworth
Slope – Mid Frequency	6dB/octave Butterworth
Slope – High Frequency	18dB/octave Butterworth
Impedance	8 ohms
Power Handling	400 Watts RMS
DIMENSIONS
Overall Width	4"
Overall Length	8.5"
