RADIAN 2216 NEO - DUAL MAGNET 15" NEO LOW FREQUENCY WOOFER
|
|
|
RADIAN 2216 NEO - DUAL MAGNET 15" NEO LOW FREQUENCY WOOFER |
|
THE RADIAN 2216NEO HAS A VERY TIGHT CLEAN SOUNDING BASS WITH NICE LOW MIDS! |
|
|
|
RADIAN 2216 NEO |
|
Item Price: $599.95 |
|
|
WOOFER
MODEL |
|
|
Specifications |
|
| Impedance | 8 ohms |
|
AES
Power Rating |
800 Watts |
| Program Power Handling | 1,600 Watts |
| Sensitivity (1W/1m) | 96.5dB SPL |
| Frequency Response | 30Hz - 2kHz |
| Voice Coil Diameter | 4.0" |
| Voice Coil Length | 23 mm |
| Air Gap Height | 10 mm |
| Voice Coil Displacement | 20 mm |
|
Mounting Information |
|
|
Overall Diameter |
15.25" / 387mm |
| Bolt Circle Diameter | 14.56" / 370mm |
| Baffle Cutout Diameter | 14" / 356mm |
| Overall Depth | 5.4" / 138mm |
| Net Weight | 14 lbs. / 6.36 kg. |
|
Materials |
|
| Woofer Cone | Kevlar Reinforced Paper Cone |
| Cone Treatment | Waterproof |
| Basket | Cast Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Input Connectors | Push Button Terminals |
| Magnet | Double Stacked Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 40 Hz |
| Impedance (Re) | 5.4 ohms |
| Total Q (Qts) | .19 |
| Mechanical Q (Qms) | 3.3 |
| Electrical Factor(Qes) | .199 |
| BL Factor | 33 T-M |
| Diaphragm Mass (Cms) | 0.1 mm/N |
| Diaphragm Mass (Mms) | 165 grams |
| Comp. Equivelant Vol. (Vas) | 114 Liters / 4.51 cu. ft. |
| Voice Coil Overhang (Xmax) | 9.0 |
| Reference Efficiency | 2.8% |
| Surface Area of Cone (Sd)m2 | .0880 m2 |
|
Frequency Response & Impedance Curve |
|
|
4.59 cu. ft. Vented Cabinet Tuned To 34Hz |
|
|
|
|
|

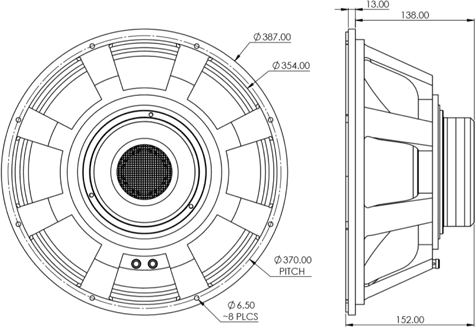

Drawing |
|
|
|
|
