RADIAN 5210 - 10" COAXIAL 2-WAY SPEAKER
|
|
|
RADIAN 5210 - 10" COAXIAL 2-WAY SPEAKER |
|
THIS 10" COAXIAL WORKS EXCELLENT IN THE HIGHEST QUALITY COMPACT STAGE MONITOR! |
|
|
|
RADIAN 5210 |
|
Item Price: $399.95 |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
|
Impedance |
8 ohms / 8 ohms |
|
RMS
Power Rating |
375 Watts / 40 Watts |
|
Program Power Rating |
750 Watts / 80 Watts |
|
Sensitivity
(1W/1m) |
96dB / 105 dB SPL |
| Frequency Response | 50Hz - 27kHz |
| Recommended Crossover | 1.5kHz |
| Voice Coil Diameter (LF/HF) | 3.0" / 1.75" |
| Nominal Dispersion | 90° |
| Voice Coil Length | 16 mm |
| Air Gap Height | 9.5 mm |
| Displacement Limit for Voice Coil | 17 mm |
|
Mounting Information |
|
|
Overall Diameter |
10.5" / 266.7mm |
| Bolt Circle Diameter | 9.75" / 247.7mm |
| Baffle Cutout Diameter | 9.19" / 233mm |
| Overall Depth | 6.13" / 156mm |
| Flange Thickness | .57" / 14.5mm |
| Mounting Holes | 8 |
| Net Weight | 13.2 lbs. / 6.0 kg. |
|
Materials |
|
| Woofer Cone | Paper/Kevlar |
| Basket | Cast Aluminum |
| Surround | M-Roll Polycotton |
| Connectors | Push Button |
| Voice Coil Winding | Edge Wound Ribbon |
| Voice Coil Wire | Copper Clad Aluminum |
| HF Diaphragm | Aluminum |
| HF Diaphragm Surround | Polymer |
| LF / HF Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 67 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | 0.92 mH |
| Total Q (Qts) | .39 |
| Mechanical Q (Qms) | 9.8 |
| Electrical Factor(Qes) | .38 |
| Comp. Equivelant Vol. (Vas) | 24.6 Liters / .87cu. ft. |
| Voice Coil Overhang (Xmax) | 5.6mm |
| Moving Mass (Mms) | 38.5 Grams |
| BL Factor | 15.5T-M |
| Reference Efficiency | 1.82% |
| Surface Area of Cone (Sd)m2 | .0342m2 |
|

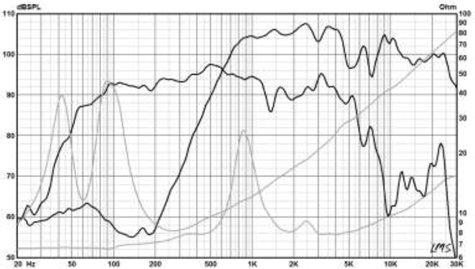

Frequency Response Graph |
|
|
|
|
