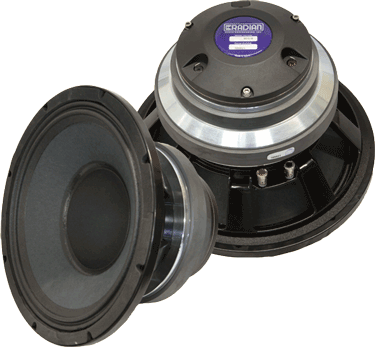

RADIAN 5312Be - COAXIAL 2-WAY SPEAKER
|
|
|
RADIAN 5312Be - COAXIAL 2-WAY SPEAKER |
|
THE EXTENDED & MORE PURE SOUNDING HIGHS FORM THIS BERYLLIUM DIAPHRAGM MAKES THIS AN EXTREMELY GREAT CHOICE FOR THE MOST DISCERNING LISTENER! |
|
|
Beryllium Diaphragm |
RADIAN 5312Be |
|
No Longer Available |
|
|
No Longer Available |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
|
Impedance |
8 ohms / 8 or 16 ohms |
|
RS
Power Rating |
500 Watts |
| Sensitivity (1W/1m) | 96dB SPL |
| Frequency Response | 60Hz - 20kHz |
| Recommended Crossover | 950Hz |
| Voice Coil Diameter(LF/HF) | 4.0" / 3.0" |
| Nominal Dispersion | 90° |
| Net Weight | 31 lbs. / 13.64 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.375" / 314.33mm |
| Bolt Circle Diameter | 11.625" / 295.28mm |
| Baffle Cutout Diameter | 11.125" / 282.58mm |
| Overall Depth | 7.937" / 201.6mm |
|
Materials |
|
| Woofer Cone | Reinforced Paper |
| HF Diaphragm | Beryllium |
| HF Suspension | Mylar |
| Basket | Stamped Steel |
| Input Connectors (HF) | .25" / 6.35mm Terminals |
| Input Connectors (LF) | Push Button Terminals |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 54 Hz |
| Impedance (Re) | 6.0 ohms |
| Total Q (Qts) | .3653 |
| Mechanical Q (Qms) | 2.6136 |
| Electrical Factor(Qes) | .4246 |
| Comp. Equivelant Vol. (Vas) | 55.44 Liters |
| Voice Coil Overhang (Xmax) | 2.87 |
| Surface Area of Cone (Sd)m2 | .08208 m2 |
|
SPL vs. Frequency |
|
|
COMING SOON |
|
|

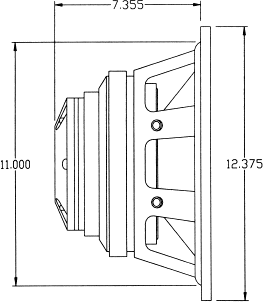

Dimensional Drawing |
|
|
|
|
