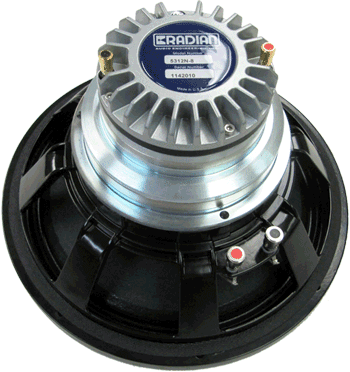

RADIAN 5312NEO - LIGHTWEIGHT COAXIAL 2-WAY SPEAKER
|
|
|
RADIAN 5312NEO - LIGHTWEIGHT COAXIAL 2-WAY SPEAKER |
|
GREAT FOR HIGH PERFORMANCE STAGE MONITORS YET DETAILED & SMOOTH FOR HIGH END HOME SPEAKER SYSTEMS! |
|
|
|
RADIAN 5312Neo |
|
5312Neo-8 - 8 ohms LF & 8 ohms HF
Item Price: $1,059.95 |
|
|
5312Neo-16 - 8 ohms LF & 16 ohms HF
Item Price: $1,059.95 |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
|
Impedance |
8 ohms / 8 or 16 ohms |
|
AES
Power Rating |
700 Watts |
|
Program
Power Rating |
1,400 Watts |
| Sensitivity (1W/1m) | 102dB SPL |
| Peak SPL | 131dB SPL |
| Frequency Response | 46Hz - 20kHz |
| Recommended Crossover | 950Hz or higher |
| Voice Coil Diameter(LF/HF) | 4.0" / 3.0" |
| Nominal Dispersion | 90° |
| Net Weight | 14.5 lbs. / 6.58 kg. |
|
Mounting Information |
|
|
Overall Diameter |
12.375" / 314.33mm |
| Bolt Circle Diameter | 11.625" / 295.28mm |
| Baffle Cutout Diameter | 11.125" / 282.58mm |
| Overall Depth | 7.15" / 181.6mm |
|
Materials |
|
| Woofer Cone | Reinforced Paper |
| HF Diaphragm | Aluminum |
| HF Suspension | Mylar |
| Basket | Cast Aluminum |
| Input Connectors (HF) | .25" / 6.35mm Terminals |
| Input Connectors (LF) | Push Button Terminals |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 51 Hz |
| Impedance (Re) | 5.93 ohms |
| Total Q (Qts) | .203 |
| Mechanical Q (Qms) | 2.4 |
| Electrical Factor(Qes) | .22 |
| Comp. Equivelant Vol. (Vas) | 35.48 Liters |
| Voice Coil Overhang (Xmax) | 4.47mm |
| Surface Area of Cone (Sd)m2 | .04451 m2 |
|

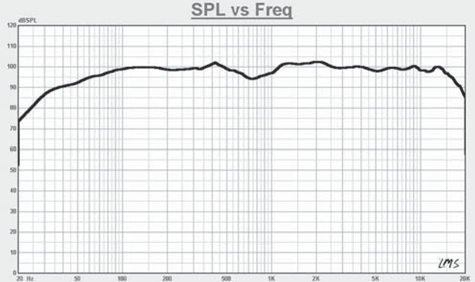

SPL vs. Frequency |
|
|
|
|
|

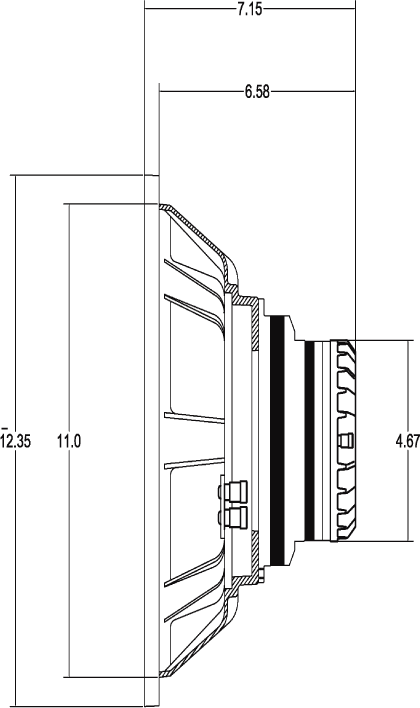

Dimensional Drawing |
|
|
|
|
