RADIAN 651PB - 2" PRO HIGH FREQ. DRIVER
|
|
|
RADIAN 651PB - 2" PRO HIGH FREQ. DRIVER |
|
DELIVERS GOOD POWER HANDLING & SPL WITH A CLEAN SOUND! |
|
|
|
RADIAN 651PB |
|
Radian 651PB-8 - 8 ohm version
Item Price: $219.95 |
|
|
Radian 651PB-16 - 16 ohm version
Item Price: $219.95 |
|
|
H.F. DRIVER
MODEL |
|
|
Specifications |
|
|
Throat Diameter |
2" |
|
Impedance |
8
or 16 ohms |
| D.C. Resistance | 6.2 or 12.4 ohms |
|
RMS
Power Rating |
60 Watts above 500Hz |
| Program Power | 120 Watts above 500Hz |
| Sensitivity (1W/1m) | 110dB SPL |
| Frequency Response | 500Hz - 20kHz |
| Recommended Crossover | 500Hz @ 24dB or 1.2kHz @ 12dB |
| Voice Coil Diameter | 3.0" / 76.2mm |
| Magnetic Assembly Weight | 49.6oz. / 1.41 kg. |
| Flux Density | 1.64T |
|
Mounting Information |
|
|
Overall Diameter |
6.5" / 165.1mm |
| Overall Depth | 2.62" / 66.5mm less studs |
| Mounting | (4) 1/4-20 studs on 4" dia. centers |
| Net Weight | 9.0 lb. / 4.18 kg. |
|
Materials |
|
| Diaphragm | Heat-Treated Aluminum Alloy |
| Voice Coil | Edgewound Copper Clad Aluminum |
| Diaphragm Suspension | Mylar |
| Input Connectors | Goldplated Push-Button Terminals |
| Magnet | Ferrite V |
|

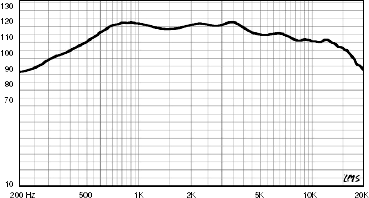

SPL vs. Frequency |
|
|
|
|
|

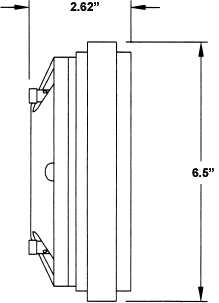

Dimensional Drawing |
|
|
|
|
