THIS 6" COAXIAL SPEAKER IS DESIGNED FOR ALL HIGH QUALITY SPEAKERS THAT REQUIRE THE ULTIMATE SOUND QUALITY!

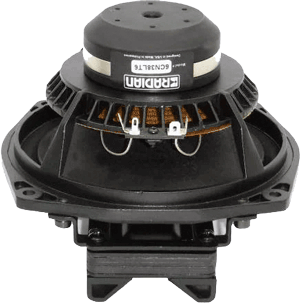

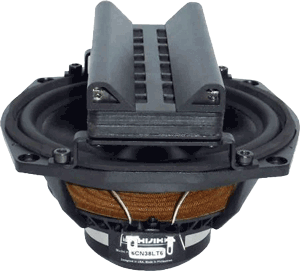

	RADIAN 6CRN38LT6
	Item Price: $329.95
COAXIAL MODEL - 6CRN38LT6
Low Frequency
LF Impedance	12 ohms
HF Impedance (Re)	7.3 ohms
LF RMS Power Rating	120 Watts
LF Short Term Power Rating, IEC	300 Watts
LF Long Term Power Rating, IEC	200 Watts
LF Sensitivity (1W/1m)	94dB SPL
HF Driver	LT6
HF Sensitivity (1W/1m)	102dB SPL
HF RMS Power Rating	40 Watts
HF Short Term Power Rating, IEC	150 Watts
HF Long Term Power Rating, IEC	80 Watts
Frequency Response	60Hz - 25kHz
Recommended Crossover	1.7kHz - 2kHz
Voice Coil Diameter	2.0"
Nominal Dispersion	90°H x 40°V
Voice Coil Length	14 mm
Air Gap Height	12.5 mm
Displacement Limit for Voice Coil	13 mm
Mounting Information
Overall Diameter	Refer To Drawing Below
Bolt Circle Diameter	6.77" / 172mm
Bolt Hole Diameter	.23" / 5.8mm
Mounting Holes	4
Baffle Cutout Diameter	5.87" / 149mm
Overall Depth	4.88" / 124mm
Magnet Diameter	2.83" / 72mm
Net Weight	3.96 lbs. / 1.8 kg.
Materials
Woofer Cone	Paper/Kevlar
Basket	Cast Aluminum
LF Surround	M-Roll Polycotton
Connectors	Faston
LF Voice Coil Wire	Copper Clad Aluminum
LF / HF Magnet	Neodymium
Thiele-Small Parameters
Resonant Frequency (Fs)	82 Hz
Impedance (Re)	8.3 ohms
Coil Inductance (Le)	0.6 mH
Total Q (Qts)	.35
Mechanical Q (Qms)	11
Electrical Factor(Qes)	.36
Comp. Equivelant Vol. (Vas)	9.3 Liters / .33cu. ft.
Voice Coil Overhang (Xmax)	5.0 mm
Moving Mass (Mms)	11.5 Grams
BL Factor	11.6 T-M
Surface Area of Cone (Sd)m2	.0138 m2

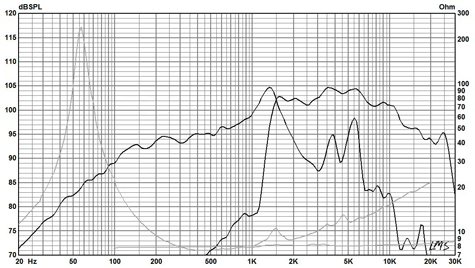

Frequency Response & Impedance Curve

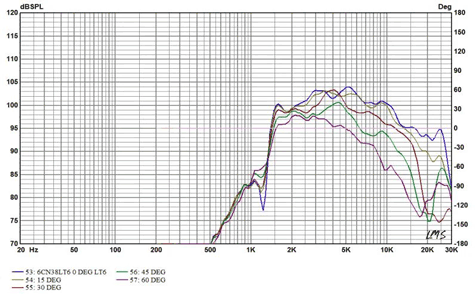

High Frequency Directivity

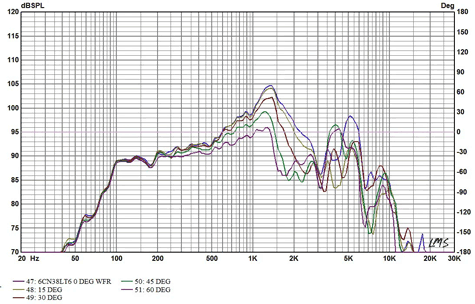

Low Frequency Directivity

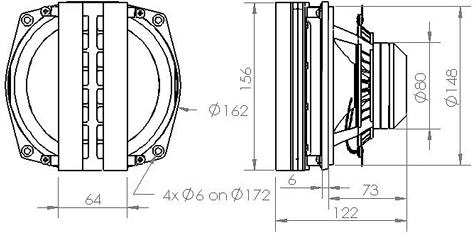

Dimensional Drawing
