RADIAN 6CRS5130-R- COAXIAL 2-WAY PLANAR RIBBON SPEAKER
|
|
|
RADIAN 6CRS5130-R- COAXIAL 2-WAY PLANAR RIBBON SPEAKER |
|
THE RADIAN 6CRS5130-R" IS A VERY HIGH QUALITY 6.5" COAXIAL SPEAKER WITH PLANAR RIBBON HIGH FREQUENCY! |
|
|
|
RADIAN 6CRS5130-R |
|
Item Price: $299.95 |
|
|
COAXIAL
MODEL |
|
|
Specifications |
|
| Impedance | 8 ohms |
| RMS Power Rating (LF/HF) | 150 Watts / 20 Watts |
| Program Power Rating (LF/HF) | 300 Watts / 40 Watts |
| Sensitivity (1W/1m) (LF/HF) | 90dB SPL / 102dB SPL |
| Frequency Response | 60Hz - 30kHz |
| Recommended Crossover | 1.5kHz |
| Voice Coil Diameter | 2.0" |
| Nominal Dispersion | 100° Conical |
| Voice Coil Length | 13.5 mm |
| Air Gap Height | 6 mm |
| Displacement Limit for Voice Coil | 13 mm |
|
Mounting Information |
|
|
Overall Diameter |
6.5" / 165mm |
| Bolt Circle Diameter | 6.16" / 156.5mm |
| Bolt Hole Diameter | .22" / 5.5mm |
| Mounting Holes | 4 |
| Baffle Cutout Diameter | 5.83" / 148mm |
| Overall Depth | 4.3" / 111.5mm |
| Magnet Diameter | 4.33" / 110mm |
| Net Weight | 4.6 lbs. / 2.1 kg. |
|
Materials |
|
| Woofer Cone | Paper/Kevlar |
| Basket | Steel |
| Surround | M-Roll Polycotton |
| Connectors | Spade |
| Voice Coil Winding | 2 Layer |
| Voice Coil Former | High Temperature Polyimide |
| Voice Coil Wire | Copper Clad Aluminum |
| HF Diaphragm | Aluminum |
| HF Suspension | Polymer |
| LF / HF Magnet | Ferrite / Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (Fs) | 82 Hz |
| Impedance (Re) | 5.6 ohms |
| Coil Inductance (Le) | 0.6 mH |
| Total Q (Qts) | .73 |
| Mechanical Q (Qms) | 3 |
| Electrical Factor(Qes) | .58 |
| Comp. Equivelant Vol. (Vas) | 6.93 Liters / .245cu. ft. |
| Voice Coil Overhang (Xmax) | 5.25 |
| Moving Mass (Mms) | 14.4 Grams |
| Mechanical Compliance (Cms) | .254 mm/N |
| BL Factor | 7.6 T-M |
| Reference Efficiency | 2.5% |
| Surface Area of Cone (Sd)m2 | .0138 m2 |
|

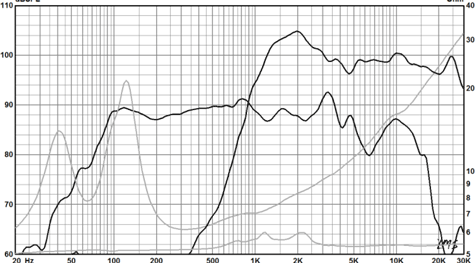

Frequency Response |
|
|
|
|
|

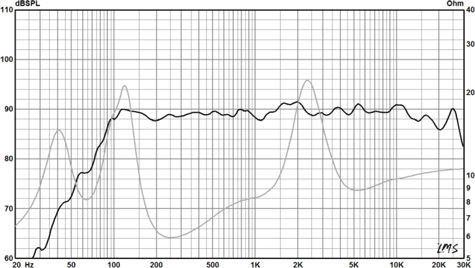

Combined Frequency Response |
|
|
|
|
|

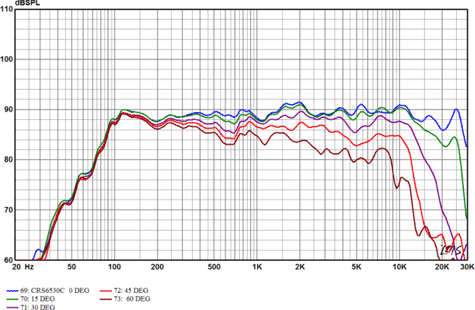

Directivity |
|
|
|
|
|

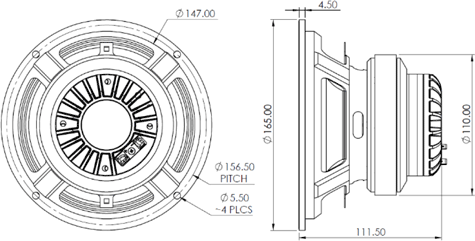

Dimensional Drawing |
|
|
|
|
