THIS 8" COAXIAL SPEAKER IS DESIGNED FOR ALL HIGH QUALITY SPEAKERS THAT REQUIRE THE ULTIMATE SOUND QUALITY!
	RADIAN 8CRF5130-R
	Item Price: $319.95
COAXIAL MODEL - 8CRF5130-R
Specifications
Impedance (LF/HF)	8 ohms / 6 ohms
RMS Power Rating (LF / HF)	200 Watts / 20 Watts
Program Power Rating (LF / HF)	400 Watts / 40 Watts
Sensitivity (1W/1m) (LF / HF)	94dB SPL / 101dB
Frequency Response	45Hz - 30kHz
Recommended Crossover	1.5kHz
Voice Coil Diameter (LF)	2.0"
Nominal Dispersion	110° Conical
Voice Coil Length	14 mm
Air Gap Height	8 mm
Displacement Limit for Voice Coil	15 mm
Mounting Information
Overall Diameter	8.29" / 210.5mm
Bolt Circle Diameter	7.73" / 196.5mm
Bolt Hole Diameter	.22" / 5.5mm
Mounting Holes	6
Baffle Cutout Diameter	7.32" / 186mm
Overall Depth	4.88" / 124mm
Flange Thickness	.37" / 9.5mm
Magnet Diameter	5.28" / 134mm
Net Weight	5.78 lbs. / 2.62 kg.
Materials
Woofer Cone	Paper/Kevlar
Basket	Cast Aluminum
Surround	M-Roll Polycotton
Connectors (LF)	Push Button
Connectors (HF)	Faston
Voice Coil Winding	2 Layer
Voice Coil Former	High Temperature Polyimide
Voice Coil Wire	Copper Clad Aluminum
HF Diaphragm	High Temperature Polyimide
LF / HF Magnet	Ferrite / Neodymium
Thiele-Small Parameters
Resonant Frequency (Fs)	70 Hz
Impedance (Re)	5.8 ohms
Coil Inductance (Le)	0.7 mH
Total Q (Qts)	.51
Mechanical Q (Qms)	6.1
Electrical Factor(Qes)	.47
Comp. Equivelant Vol. (Vas)	16.1 Liters / .57cu. ft.
Voice Coil Overhang (Xmax)	5.0 mm
Moving Mass (Mms)	22.5 Grams
BL Factor	10.8 T-M
Reference Efficiency	2.5%
Surface Area of Cone (Sd)m2	.0227 m2

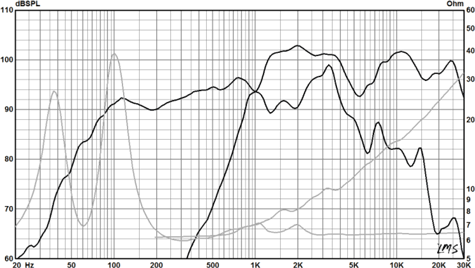

Frequency Response & Impedance Curve

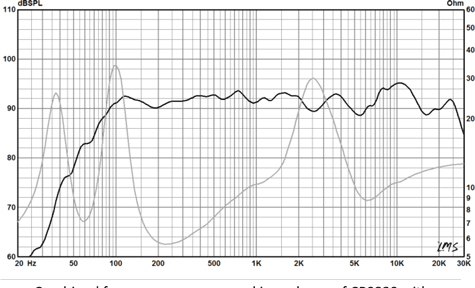

Combined Frequency Response In 15 Liter Vented Cabinet

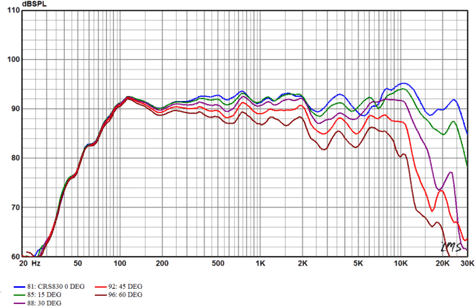

Directivity

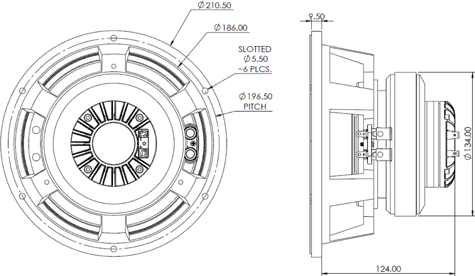

Dimensional Drawing
